Ford Escape: Uni-Body, Subframe and Mounting System / Removal and Installation - Rear Subframe Rear Bushing

Special Tool(s) / General Equipment

204-598
Hydraulic Cylinder 10t
204-598-01
Remover/Installer, Subframe Bushing Guide
204-598-04
Adapter for 204-598

Removal

  1. Remove the rear subframe.
    Refer to: Rear Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).
  1. NOTE: Note the position of the components before removal.

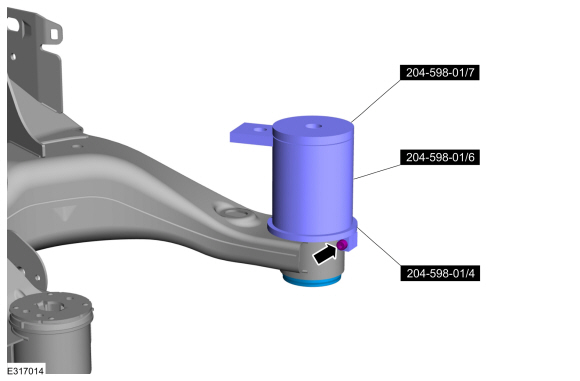

    Assemble the subframe bushing guide to the rear subframe.
    Use Special Service Tool: 204-598-01  Remover/Installer, Subframe Bushing Guide.

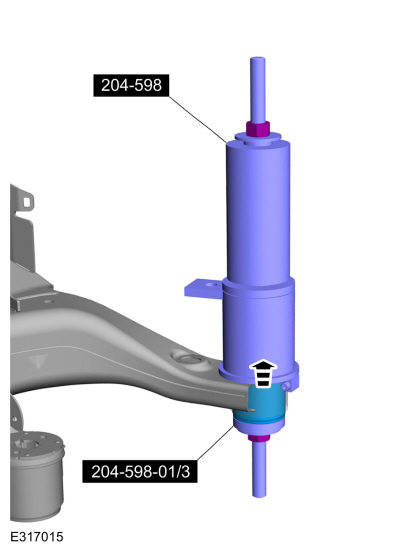

  1. Assemble the special tools and remove the rear subframe rear bushing.
    Use Special Service Tool: 204-598-01  Remover/Installer, Subframe Bushing Guide. , 204-598  Hydraulic Cylinder 10t.

Installation

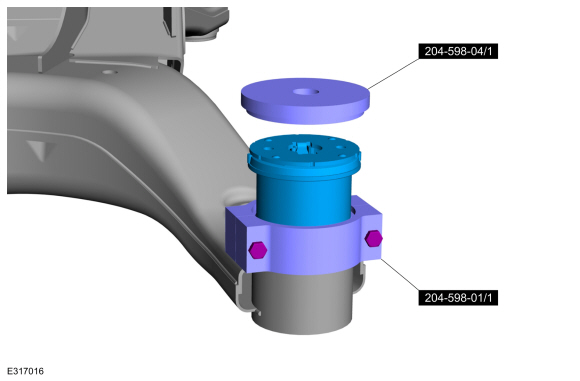

  1. Assemble the special tools to the rear subframe with the new subframe bushing.
    Use Special Service Tool: 204-598-01  Remover/Installer, Subframe Bushing Guide. , 204-598-04  Adapter for 204-598.

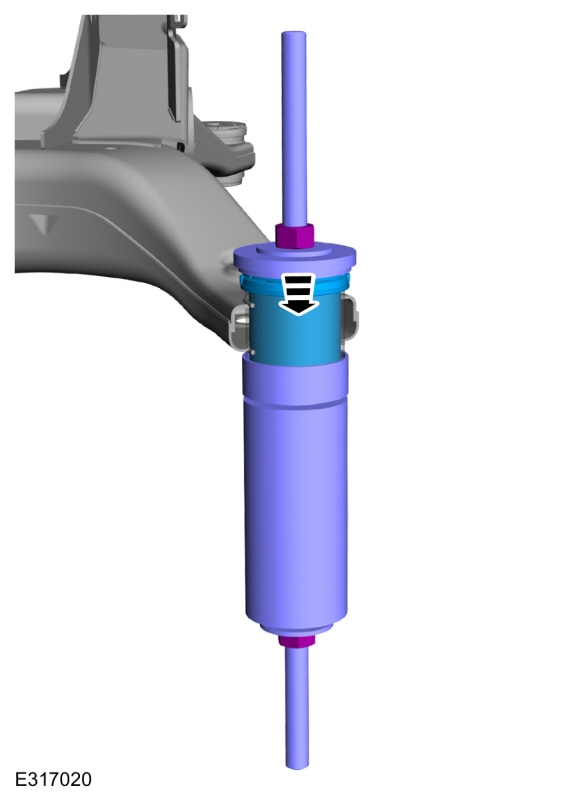

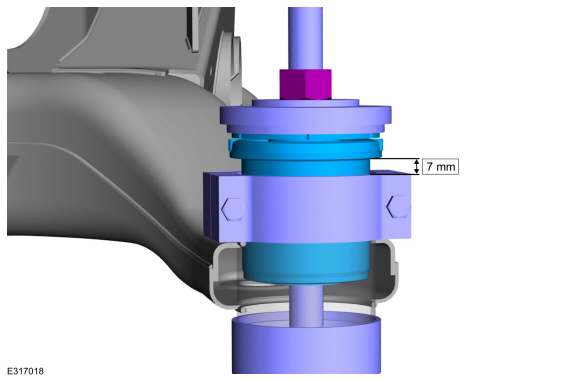

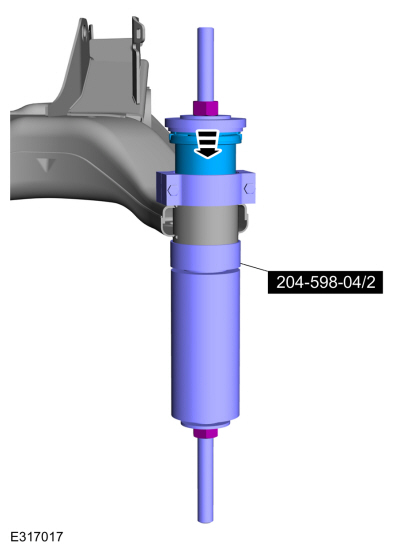

  1. Gently press the new subframe bushing into the rear subframe.
    Use Special Service Tool: 204-598-01  Remover/Installer, Subframe Bushing Guide. , 204-598-04  Adapter for 204-598. , 204-598  Hydraulic Cylinder 10t.

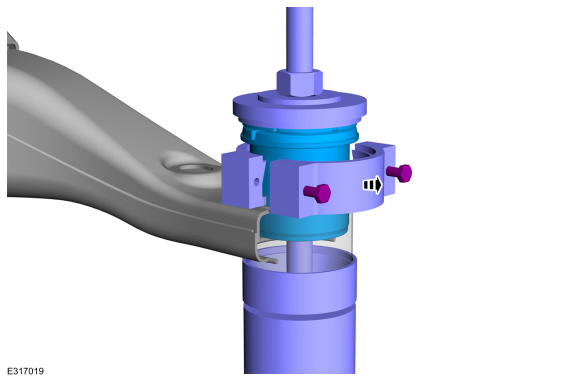

  1. Remove the adapter.
  1. Install the rear subframe bushing and remove the special tools.
  1. Install the rear subframe.
    Refer to: Rear Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

    Removal and Installation - Rear Subframe Front Bushing

    Special Tool(s) / General Equipment 204-598Hydraulic Cylinder 10t 204-598-01Remover/Installer, Subframe Bushing Guide 204-598-04Adapter for 204-598 204-598-05Adapter for 204-598 Removal NOTE: Removal steps in this procedure may contain installation details...
