Ford Escape: Wipers and Washers / Autowipers
What Are Autowipers
Autowipers turns on and controls the
speed and frequency of the windshield
wipers.
Autowipers Settings
- Press Settings on the touchscreen.
- Press Vehicle Settings.
- Press Wipers.
- Switch Rain Sensing on or off.
Note: When you switch the feature off, the
wipers do not operate based on the rain
sensor. When you switch on the windshield
wipers to the intermittent wipe position with
the feature off, the wipers use the wipe
speed set by the rotary control.

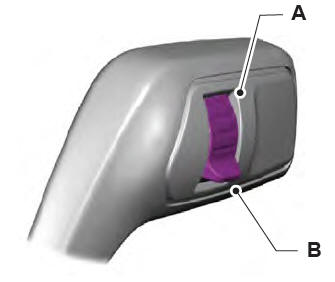

Adjusting the Sensitivity of the Rain Sensor

- High sensitivity.
- Low sensitivity.
Use the rotary control to set the sensitivity
of the rain sensor.
When you select high sensitivity, the wipers
operate when the sensor detects a small
amount of water on the windshield.
When you select low sensitivity, the wipers
operate when the sensor detects a large
amount of water on the windshield.
Wiper Precautions
Do not operate the wipers on a dry
windshield. This could scratch the glass or
damage the wiper blades. Use the
windshield washers before wiping a dry
windshield...
Switching the Rear Window Wiper On and Off
Intermittent wipe.
Continuous wipe.
Rear window wiper off.
Reverse Wipe
What Is Reverse Wipe
Reverse wipe turns on the rear window
wiper when you shift into reverse (R) and
the windshield wipers are on...
Other information:
System Operation
System Diagram
E344249
*.sttxt {
visibility: hidden;
}
*.stcallout {
visibility: visible;
}
1
GWM
2
BCM
3
APIM
4
ACM
5
WACM
Item
Description
1
GWM
2
BCM
3
APIM
..
Overview
The
windshield wiper/washer system is activated by the wiper/washer switch.
The wiper/washer switch is mounted to the right side of the SCCM . The
following functions/ features of the windshield wiper/washer system are:
Mist wipe
Windshield wash (includes front camera wash, if equipped)
Courtesy wipe
Windshield wipers (low/high speed)
Intermittent wipers
..
