Ford Escape: Parking Aid - Vehicles With: 180 Degree Camera/360 Degree Camera/Parking Aid Camera / Description and Operation - Parking Aid - Component Location

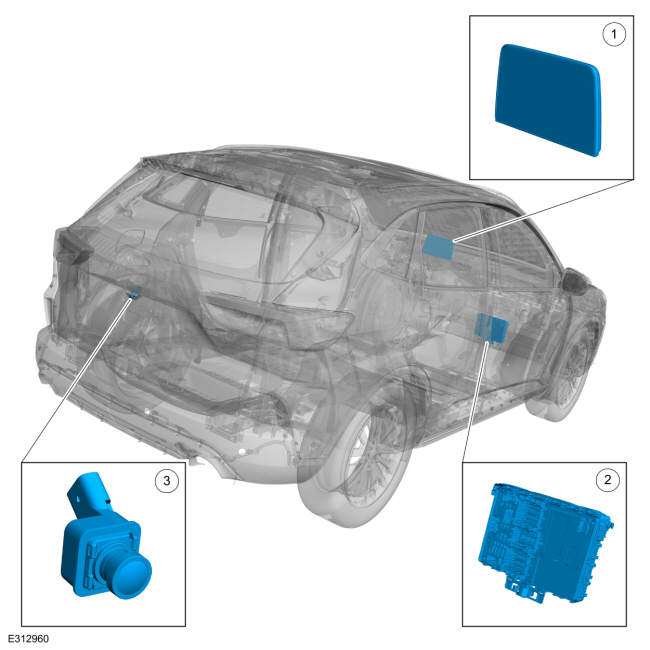

Component Location - Parking Aid Camera
Item |
Description |
1 |
Audio system display |
2 |
BCM
|
3 |
Rear parking aid camera |
Overview
Rear Only Parking Aid Camera
The
rear parking aid camera system visually aids the driver while reversing
or reverse parking the vehicle...
