Ford Escape 2020-2025 Owners Manual / Instrument Cluster / Instrument Cluster Overview - Hybrid Electric Vehicle (HEV), Vehicles With: 12.3 Inch Instrument Cluster Display Screen

Ford Escape: Instrument Cluster / Instrument Cluster Overview - Hybrid Electric Vehicle (HEV), Vehicles With: 12.3 Inch Instrument Cluster Display Screen

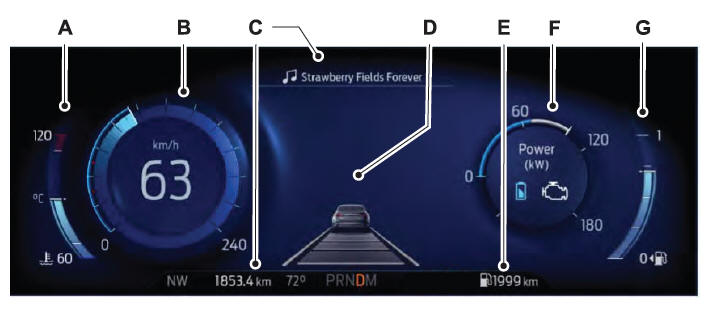

Ford Escape. 12.3 Inch Instrument Cluster Display Screen

  1. Coolant temperature gauge.
  2. Speedometer.
  3. Information bar.
  4. Instrument cluster display.
  5. Vehicle driving range.
  6. Power gauge.
  7. Fuel gauge.
