Ford Escape: Capacities and Specifications / Engine Specifications

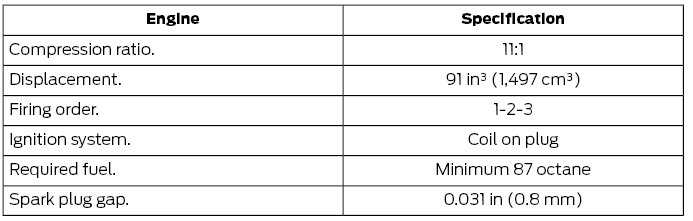

1.5L EcoBoost™

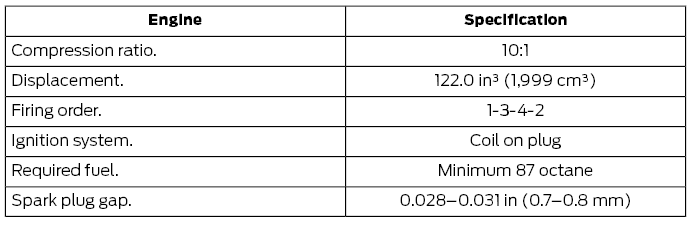

2.0L EcoBoost™

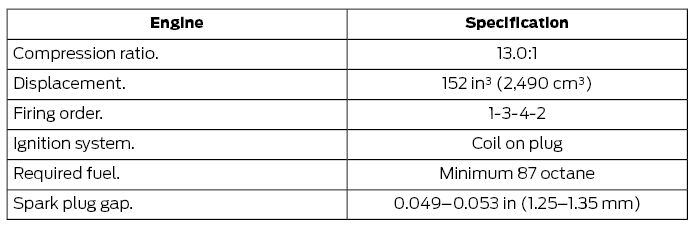

2.5L, Hybrid Electric Vehicle (HEV)/Plug-In Hybrid
Electric Vehicle (PHEV)

1.5L EcoBoost™
1 If a Motorcraft oil filter is not available, use
an oil filter that meets industry performance
specification SAE/USCAR-36.
We recommend Motorcraft parts that are
available at your authorized dealer or at
www...
