Ford Escape: High Voltage Battery, Mounting and Cables / General Procedures - High Voltage Connector Disconnect and Connect

Disconnect

  WARNING: To prevent the risk of high-voltage shock, always follow precisely all warnings and service instructions, including instructions to depower the system. The high-voltage system utilizes approximately 450 volts DC, provided through high-voltage cables to its components and modules. The high-voltage cables and wiring are identified by orange harness tape or orange wire covering. All high-voltage components are marked with high-voltage warning labels with a high-voltage symbol. Failure to follow these instructions may result in serious personal injury or death.

NOTICE: Before disconnecting the high voltage battery electrical connector, the electrical connector must be cleaned with a nylon brush and free of debris. Blow any dirt or debris from the electrical connector with compressed air before disconnecting or component damage may occur.

NOTICE: High voltage electrical connectors may require unique methods to be disconnected. If not properly disconnected, component damage may occur.

  1. Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).
  1. De-energize the high voltage system.
    Refer to: High Voltage System De-energizing (414-03A High Voltage Battery, Mounting and Cables, General Procedures).
  1. View videos below.

    Stage 1 electrical connector


    Stage 2 electrical connector

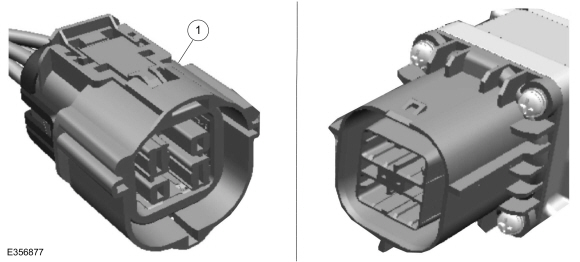

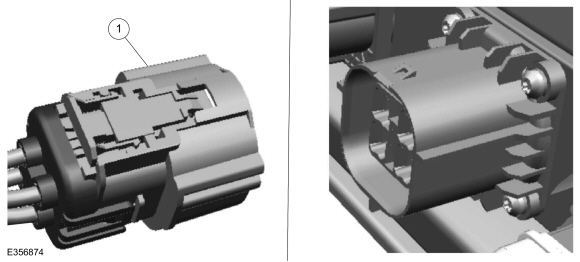

  1.   CX482/CX483 - PHEV/FHEV - High Voltage Battery Cable to Air Conditioning (A/C) Compressor Jumper Harness (2-way)


    Callout Connector
    1 Stage 1 electrical connector

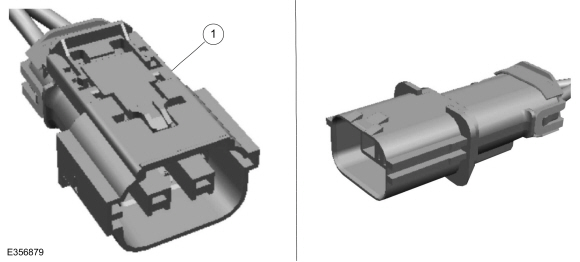

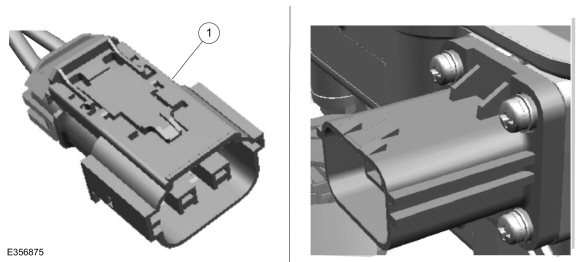

  1.   CX482/CX483 - PHEV/FHEV - Air Conditioning (A/C) Compressor Jumper Harness to Air Conditioning (A/C) Compressor (2-way)


    Callout Connector
    1 Stage 1 electrical connector

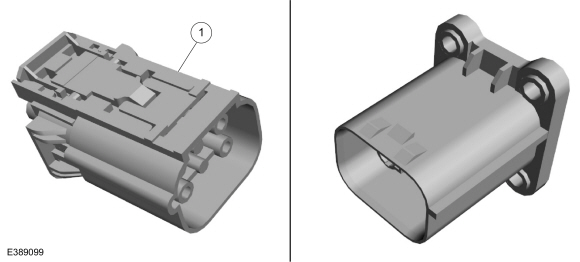

  1.   CX482/CX483 - PHEV - Air Conditioning (A/C) Compressor Jumper Harness to Cabin Coolant Heater (4-way)


    Callout Connector
    1 Stage 1 electrical connector

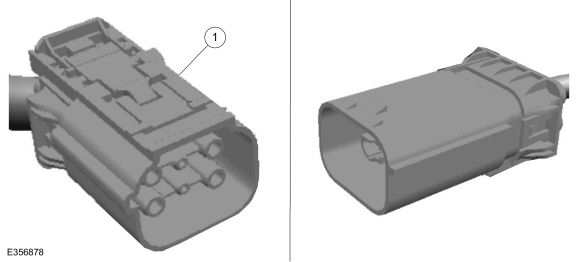

  1.   CX482/CX483 - PHEV - High Voltage Battery to High Voltage Battery Cable (4-way)


    Callout Connector
    1 Stage 1 electrical connector

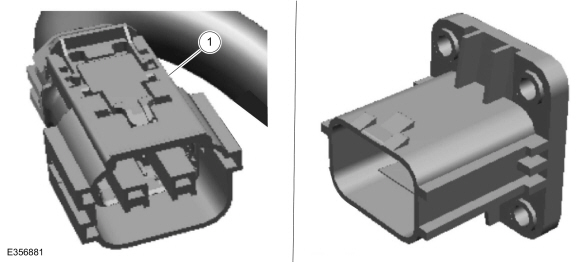

  1.   CX482/CX483 - PHEV - Charge Port Wire Harness to High Voltage Battery Cable


    Callout Connector
    1 Stage 2 electrical connector

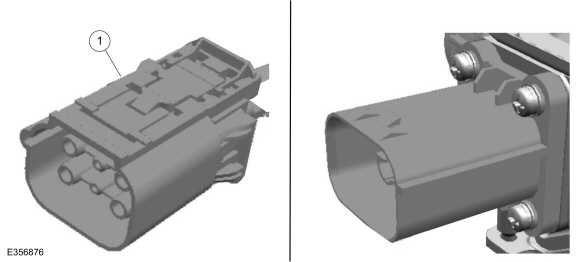

  1.   CX482/CX483 - PHEV - High Voltage Battery Cable to Secondary On-Board Diagnostic Control Module A (SOBDM) (2-way)


    Callout Connector
    1 Stage 1 electrical connector

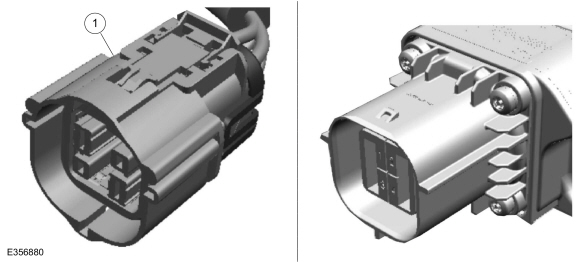

  1.   CX482/CX483 - PHEV - High Voltage Battery Cable to Secondary On-Board Diagnostic Control Module A (SOBDM) (6-way)


    Callout Connector
    1 Stage 1 electrical connector

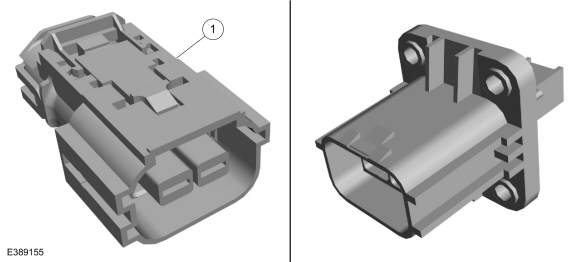

  1.   CX482/CX483 - PHEV/FHEV - High Voltage Battery Cable to Direct Current/Direct Current (DC/DC) Converter Control Module (4-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   CX727 - High Voltage Battery Cable to Air Conditioning (A/C) Compressor (2-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   CX727 - High Voltage Battery Cable to Cabin Coolant Heater (4-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   CX727 - High Voltage Battery to High Voltage Battery Cable (4-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   CX727 - High Voltage Battery Cable to Secondary On-Board Diagnostic Control Module A (SOBDM) (2-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   CX727 - High Voltage Battery Cable to Direct Current/Direct Current (DC/DC) Converter Control Module (4-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   P702 - High Voltage Battery Cable to Air Conditioning (A/C) Compressor (2-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   P702 - High Voltage Battery Cable to Cabin Coolant Heater (4-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   P702 - High Voltage Battery Cable to Refrigerant Compressor - Vehicles Equipped with Max Trailer Tow (2-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   P702 - High Voltage Battery to High Voltage Battery Cable (4-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   P702 - Charge Port Wire Harness to High Voltage Battery Cable - Vehicles Equipped with Generic Function Module 2 (GFM2) (6-way)


    Callout Connector
    1 Stage 2 electrical connector

  1.   P702 - High Voltage Battery Cable to Secondary On-Board Diagnostic Control Module A (SOBDM) (2-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   P702 - High Voltage Battery Cable to Generic Function Module 2 (GFM2) - Vehicles with Secondary Battery Charger Control Module (BCCM) (2-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   P702 - High Voltage Battery Cable to Direct Current/Alternating Current (DC/AC) Inverter (4-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   P702 - High Voltage Battery Cable to Direct Current/Direct Current (DC/DC) Converter Control Module (4-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   P758 - High Voltage Battery Cable to Air Conditioning (A/C) Compressor Jumper Harness (2-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   P758 - Air Conditioning (A/C) Compressor Jumper Harness to Air Conditioning (A/C) Compressor (2-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   P758 - High Voltage Battery Cable to Direct Current/Direct Current (DC/DC) Converter Control Module (4-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   U611 PHEV - High Voltage Battery Cable to Air Conditioning (A/C) Compressor Jumper Harness (2-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   U611 PHEV/U625 FHEV - Air Conditioning (A/C) Compressor Jumper Harness to Air Conditioning (A/C) Compressor (2-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   U611 PHEV - Air Conditioning (A/C) Compressor Jumper Harness to Cabin Coolant Heater (4-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   U611 PHEV - High Voltage Battery Cable to Secondary On-Board Diagnostic Control Module A (SOBDM) (2-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   U611 PHEV - High Voltage Battery Cable to Secondary On-Board Diagnostic Control Module A (SOBDM) (6-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   U611 PHEV/U625 FHEV - High Voltage Battery Cable to Direct Current/Direct Current (DC/DC) Converter Control Module (4-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   V363 - High Voltage Battery Cable to Air Conditioning (A/C) Compressor (2-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   V363 - High Voltage Battery Cable to Cabin Coolant Heater (4-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   V363 - High Voltage Battery to High Voltage Battery Cable (4-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   V363 - High Voltage Battery Cable to Secondary On-Board Diagnostic Control Module A (SOBDM) (2-way)


    Callout Connector
    1 Stage 1 electrical connector

  1.   V363 - High Voltage Battery Cable to Direct Current/Direct Current (DC/DC) Converter Control Module (4-way)


    Callout Connector
    1 Stage 1 electrical connector
