Ford Escape: Head Up Display (If Equipped)

What Is the Head Up Display

The system displays information on a display screen in your field of vision, allowing you to keep your eyes on the road. You can select which information the system displays.

Switching the Head Up Display On and Off

Ford Escape. Head Up Display (If Equipped) Press the button on the steering wheel or center console.

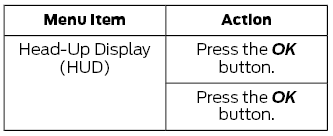

Note: The head up display menu appears in the information display.

Ford Escape. Head Up Display (If Equipped)

Note: The system remembers the last setting when you start the engine.

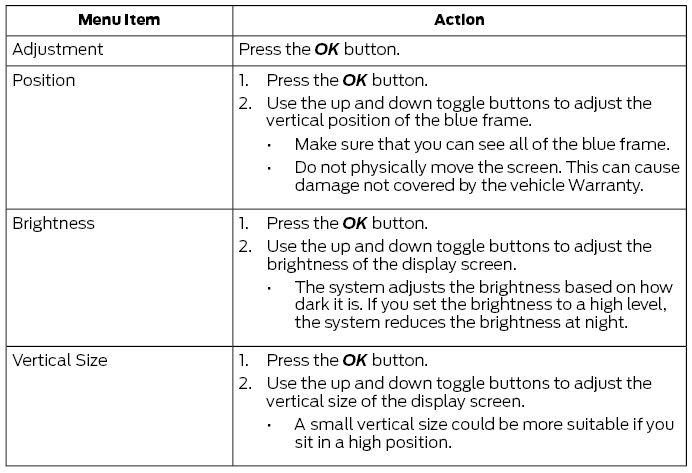

Head Up Display Settings

Ford Escape. Head Up Display (If Equipped)

Selecting Which Information the System Displays

Start the engine and switch the system on.

Note: Press the head up display button if you do not see the head up display menu in the instrument cluster display.

Note: For your safety, some features are speed-dependent. The system limits their use to when your vehicle is not moving.

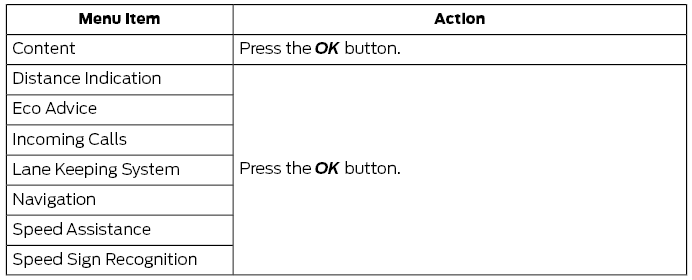

Use the instrument cluster display controls on the steering wheel to select which information the system displays.

Ford Escape. Head Up Display (If Equipped)

Head Up Display Indicators

Ford Escape. Head Up Display (If Equipped)

Note: The head up display indicator could illuminate to supplement an information message.

Head Up Display – Troubleshooting

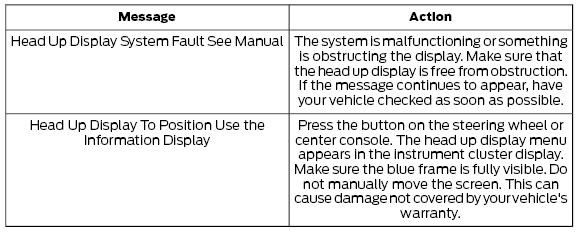

Head Up Display – Information Messages

Ford Escape. Head Up Display (If Equipped)
