Ford Escape: Engine Cooling / Removal and Installation - Coolant Pump

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer

Removal

  1. Drain the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03C Engine Cooling, General Procedures).

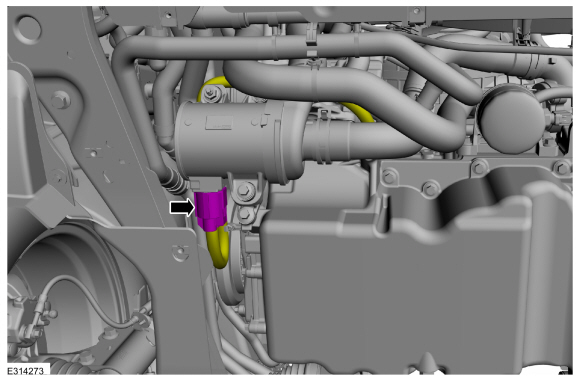

  1. Disconnect the electrical connector.

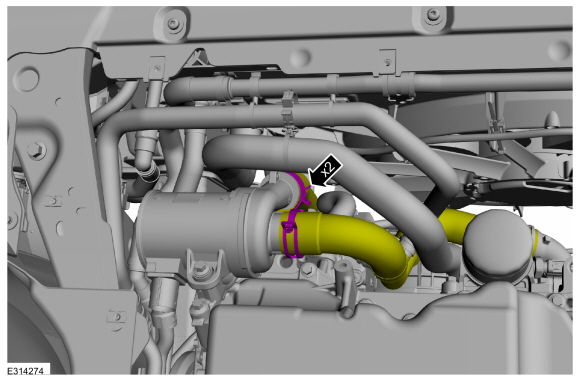

  1. Release the clamps and disconnect the coolant hoses.
    Use the General Equipment: Hose Clamp Remover/Installer
  1. Remove the bolts, nut and the coolant pump.
    Torque: 18 lb.ft (25 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. Fill and bleed the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03C Engine Cooling, General Procedures).
