INSTALLING AND REMOVING THE LUGGAGE COMPARTMENT COVER
WARNING: Make sure that you
properly secure the luggage cover.
Failure to follow this instruction could
result in personal injury in the event of a
sudden stop or crash.
WARNING: Do not place objects
on the luggage cover. Failure to follow
this instruction could result in personal
injury or death in the event of a sudden
stop or crash.
Installing the Luggage Cover
- Insert the luggage cover.

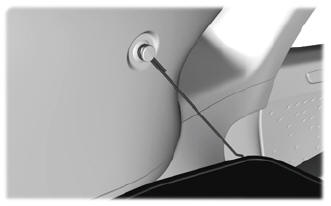

- Attach the retaining cord to the
luggage compartment trim panel.

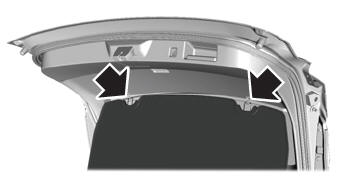

- Insert the retaining clips into the
litfgate trim panel.
Note: Make sure to support the luggage
cover when inserting the retaining clips.
Removing the Luggage Cover
- Open the liftgate.

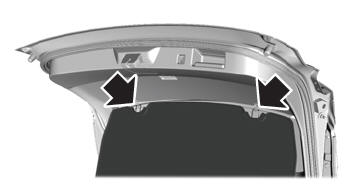

- Detach the retaining clips on the
liftgate trim panel.

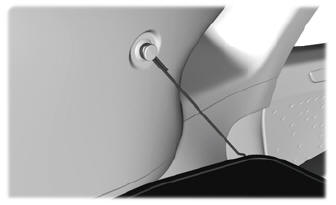

- Detach the retaining cord on the
luggage compartment trim panel.
Note: Support the luggage cover when
detaching the retaining clips.
- Lift the luggage cover out of the
liftgate.
The luggage cover can be stowed in the
luggage compartment.
