Ford Escape: Child Safety / Booster Seats

Use a belt-positioning booster seat for children who have outgrown or no longer properly fit in a child restraint and meet the following criteria.

  • Generally children who are less than 57 in (1.45 m) tall.
  • Are greater than age four (4) and less than age twelve (12).
  • Are between 40 lb (18 kg) and 80 lb (36 kg) and upward to 100 lb (45 kg).

Many state and provincial laws require that children use approved booster seats until they reach age eight, a height of 57 in (1.45 m) tall, or 80 lb (36 kg).

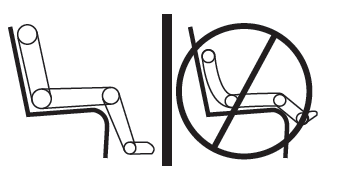

Booster seats should be used until you can answer yes to all of these questions when seated without a booster seat:

Ford Escape. Booster Seats

  • Can the child sit all the way back against their vehicle seat backrest with knees bent comfortably at the edge of the seat cushion?
  • Can the child sit without slouching?
  • Does the lap belt rest low across the hips?
  • Is the shoulder belt centered on the shoulder and chest?
  • Can the child stay seated like this for the whole trip?

Always use booster seats in conjunction with your vehicle lap and shoulder belt.

Types of Booster Seats

Ford Escape. Booster Seats

  • Backless booster seats

If your backless booster seat has a removable shield, remove the shield. If a vehicle seating position has a low seat backrest or no head restraint, a backless booster seat may place your child's head, as measured at the tops of the ears, above the top of the seat. In this case, move the backless booster to another seating position with a higher seat backrest or head restraint and lap and shoulder belts, or consider using a high-back booster seat.

Ford Escape. Booster Seats

  • High-back booster seats

If, with a backless booster seat, you cannot find a seating position that adequately supports your child's head, a high-back booster seat would be a better choice.

Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder.

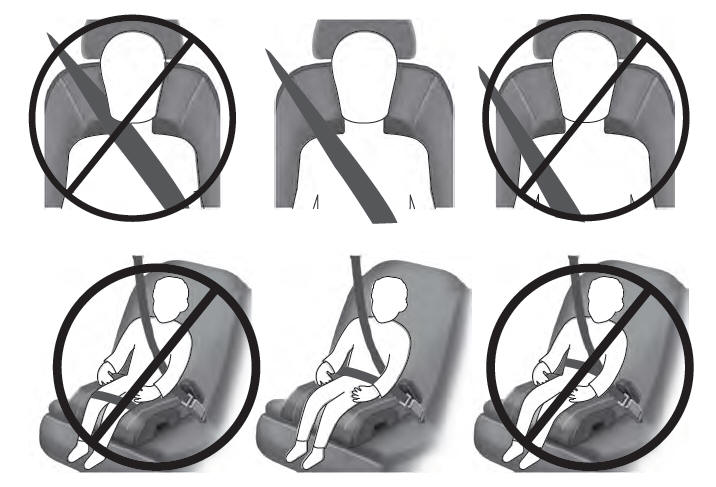

The following drawings compare the ideal fit to a shoulder belt uncomfortably close to the neck and a shoulder belt that could slip off the shoulder. The drawings also show how the lap belt should be low and snug across the child's hips.

Ford Escape. Booster Seats

If the booster seat slides on the vehicle seat upon which it is being used, placing a rubberized mesh sold as shelf or carpet liner under the booster seat may improve this condition. Do not use any item thicker than this under the booster seat. Check with the booster seat manufacturer's instructions.

    Using Tether Straps

    Many forward-facing child restraints include a tether strap which extends from the back of the child restraint and hooks to an anchoring point called the top tether anchor...

    Child Safety Locks

    WARNING: You cannot open the rear doors from inside if you have put the child safety locks on. A child safety lock is on the rear edge of each rear door...
