Ford Escape: Child Safety / Child Restraints

Child Restraint Position Information

Install the child restraint tightly against the vehicle seat. It may be necessary to lift or remove the head restraint.

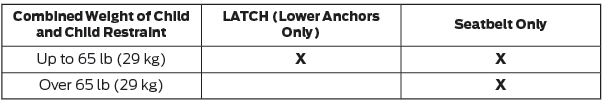

Rear Facing Child Restraints

Ford Escape. Child Restraints

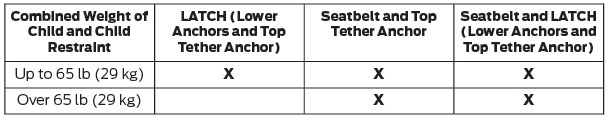

Forward Facing Child Restraints

Ford Escape. Child Restraints

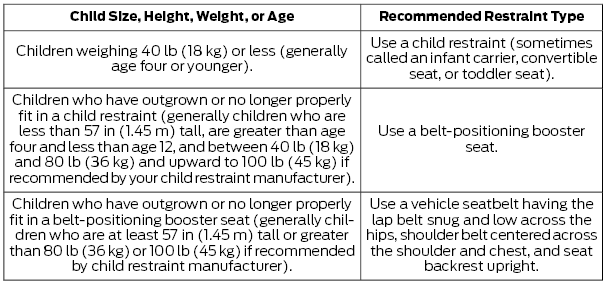

Child Restraints Recommendation

Ford Escape. Child Restraints

You are required by law to properly use child restraints for infants and toddlers in the United States, Canada and Mexico.

Many states and provinces require that small children use approved booster seats until they reach age eight, a height of 57 in (1.45 m) tall, or 80 lb (36 kg). Check your local and state or provincial laws for specific requirements about the safety of children in your vehicle.

When possible, properly restrain children 12 years of age and under in a rear seating position of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position.

When installing a rear facing child restraint, adjust the vehicle seats to avoid interference between the child restraint and the vehicle seat in front of the child restraint.

    Child Restraint Anchor Points

    W..

    Installing Child Restraints

    ..
