Ford Escape: Fuses / Under Hood Fuse Box

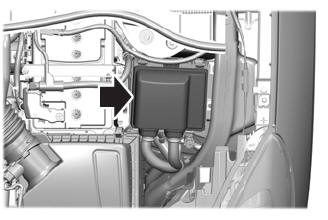

Locating the Under Hood Fuse Box

Ford Escape. Under Hood Fuse Box

Accessing the Under Hood Fuse Box

Ford Escape. Under Hood Fuse Box

  1. Pull the latch toward you and remove the top cover.

    Ford Escape. Under Hood Fuse Box

  2. Pull the connector lever upward.
  3. Pull the connector upward to remove it.

    Ford Escape. Under Hood Fuse Box

  4. Pull both latches toward you and remove the fuse box.
  5. Turn the fuse box over and open the lid.

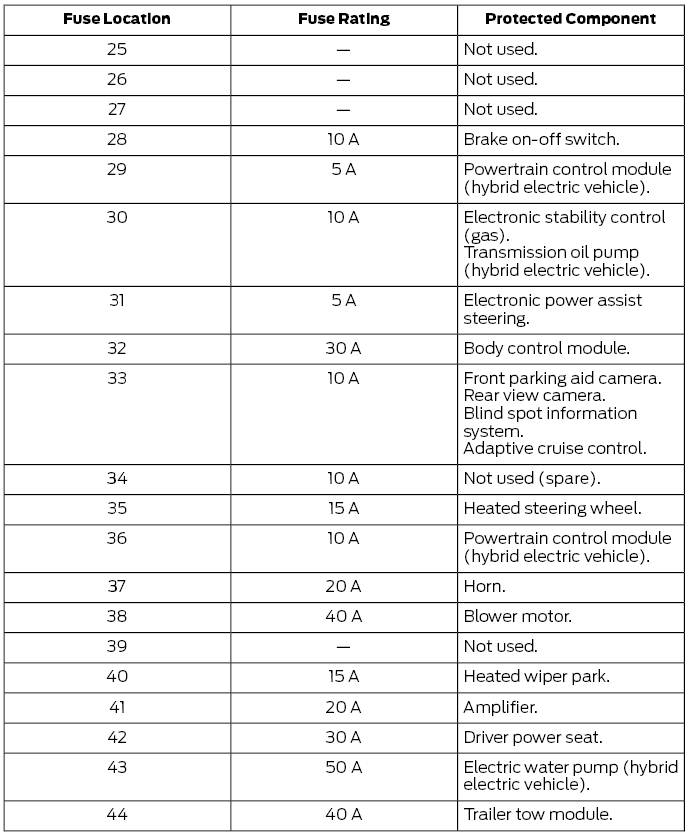

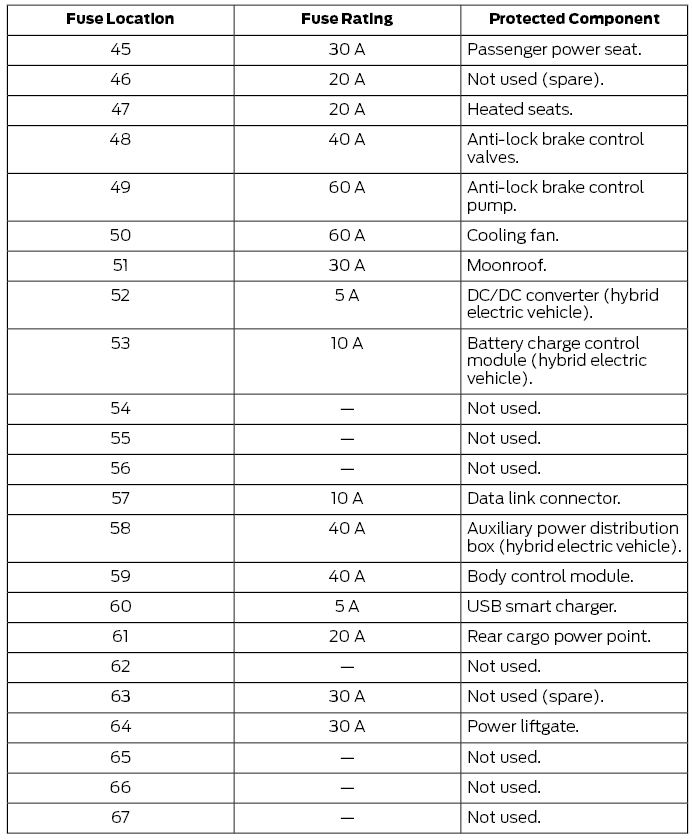

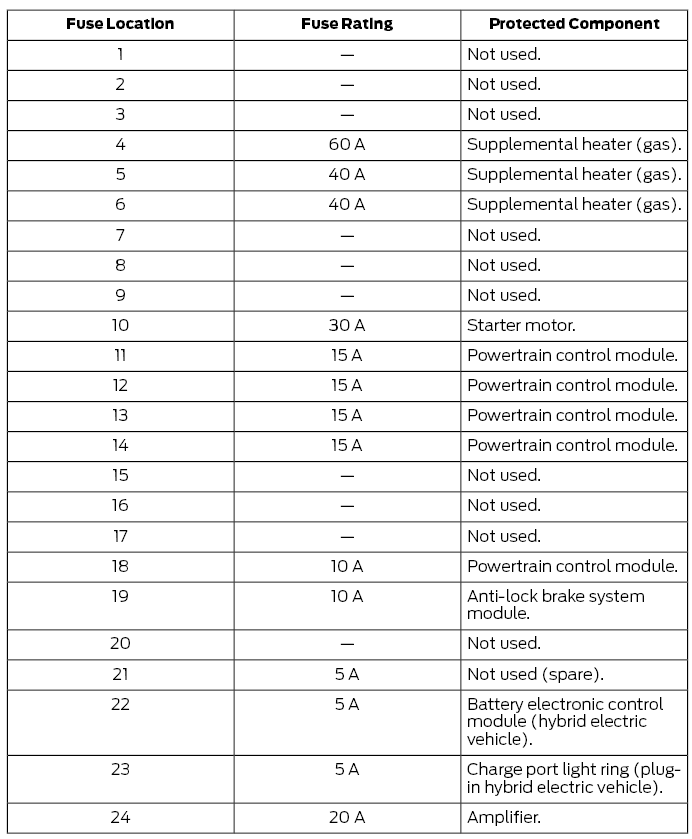

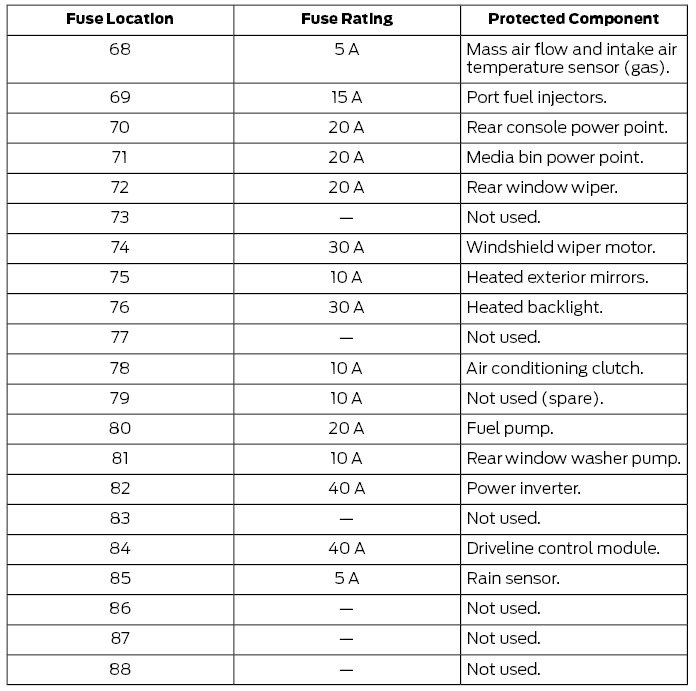

Identifying the Fuses in the Under Hood Fuse Box

Ford Escape. Under Hood Fuse Box

Ford Escape. Under Hood Fuse Box

Ford Escape. Under Hood Fuse Box

Ford Escape. Under Hood Fuse Box

Ford Escape. Under Hood Fuse Box

    Fuses

    Fuse Precautions WARNING: Always disconnect the battery before servicing high current fuses. WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs...

    Body Control Module Fuse Box.

    Locating the Body Control Module Fuse Box Accessing the Body Control Module Fuse Box Identifying the Fuses in the Body Control Module Fuse Box ..
