Ford Escape: Fuel Charging and Controls - Turbocharger - 1.5L EcoBoost (132kW/180PS) – I3 (Y1) / Description and Operation - Turbocharger - Component Location

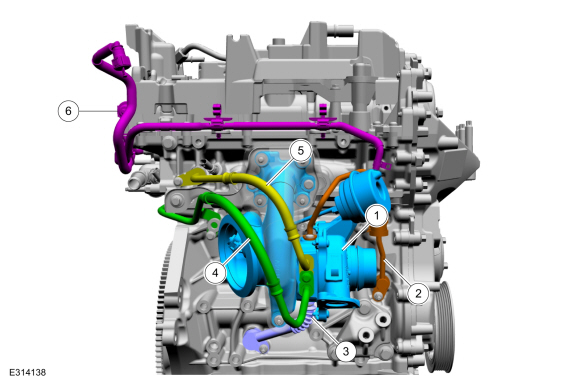

1.5L EcoBoost Turbocharger Components


Item Description
1 Turbocharger
2 Turbocharger oil supply tube
3 Turbocharger oil return tube
4 Turbocharger coolant supply tube
5 Turbocharger coolant return tube
6 Wastegate control valve solenoid

1.5L EcoBoost Turbocharger Control


Item Description
1 Wastegate control valve solenoid
2 Vacuum pump
3 Turbocharger

    Fuel Charging and Controls - Turbocharger - 1.5L EcoBoost (132kW/180PS) – I3 (Y1)

    ..

    Description and Operation - Turbocharger - System Operation and Component Description

    System Operation Turbocharger And Charge Air Cooler (CAC) Systems Turbocharger System A turbocharger is an exhaust gas driven device used to increase the power output of an engine by the turbocharger compressor increasing the pressure of the air entering the engine...
