Ford Escape: Exterior Mirrors

Adjusting the Exterior Mirrors

WARNING: Do not adjust the mirrors when your vehicle is moving. This could result in the loss of control of your vehicle, serious personal injury or death.

Ford Escape. Exterior Mirrors

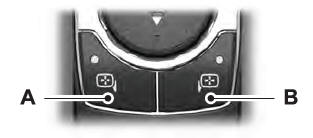

  1. Left-hand mirror.
  2. Right-hand mirror.

Ford Escape. Exterior Mirrors

To adjust your mirrors, switch your vehicle on, with the ignition in accessory mode or the engine running.

  1. Select the mirror you want to adjust. The control light turns on.

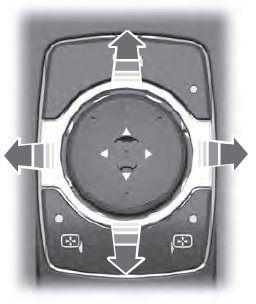

  2. Use the adjustment control to adjust the position of the mirror.
  3. Press the mirror control again. The control light turns off.

Folding the Exterior Mirrors

Push the mirror toward the door window glass. Make sure that you fully engage the mirror in its support when returning it to its original position.

    Interior Mirror

    Interior Mirror Precautions WARNING: Do not adjust the mirrors when your vehicle is moving. This could result in the loss of control of your vehicle, serious personal injury or death...

    Moonroof (If Equipped)

    ..
