Ford Escape: Engine System - General Information / General Procedures - Bearing Inspection

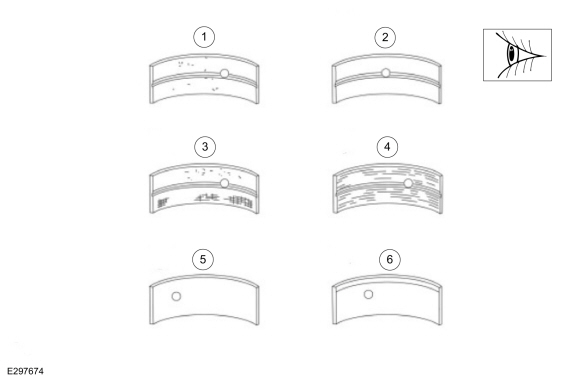

Inspection

    1. Cratering - fatigue failure
    1. Spot glazing - incorrect seating
    1. Scratching - dirty engine oil
    1. Base exposed - poor lubrication
    1. Both edges worn - journal damaged
    1. One edge worn - journal tapered or bearing not seated
