Ford Escape: Handles, Locks, Latches and Entry Systems / General Procedures - Liftgate Latch Manual Release
Special Tool(s) /
General Equipment
| Flat-Bladed Screwdriver |
| Interior Trim Remover |
Activation
-
Remove the liftgate latch access cover from the center of the liftgate trim panel.
Use the General Equipment: Interior Trim Remover
-
Insert a flat-bladed screwdriver through the access cover opening and depress the cinch release button.
Use the General Equipment: Flat-Bladed Screwdriver
-

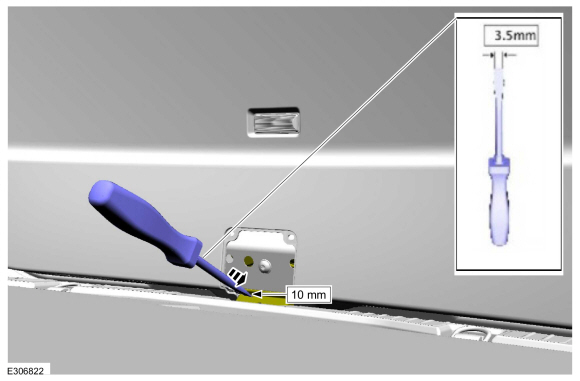

Insert a 3.5 mm wide flat-bladed screwdriver through the access cover opening 10 mm deep into the RH side of the slot.
Use the General Equipment: Flat-Bladed Screwdriver
-

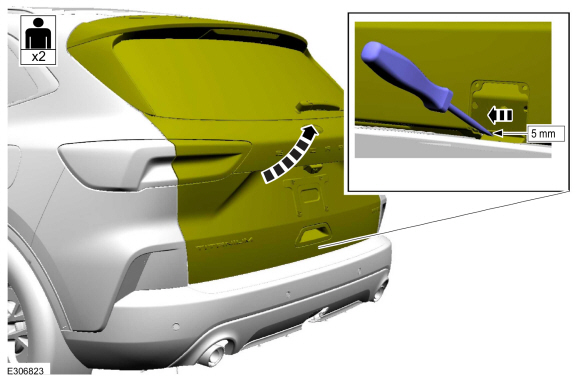

Slide the 3.5 mm wide flat-bladed screwdriver through the access cover
opening 5 mm to the LH side of the slot. Releasing the liftgate latch
and opening the liftgate.
Use the General Equipment: Flat-Bladed Screwdriver
