Ford Escape Manuals

Ford Escape: Climate Control / Manual Climate Control

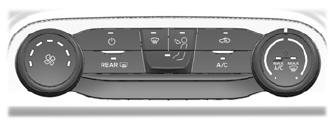

Ford Escape. Manual Climate Control

Note: Depending on your vehicle option package, the controls may look different from what you see here.

Directing the Airflow

Ford Escape. Manual Climate Control Press and release the button to direct airflow to the windshield air vents and de-mister.

Ford Escape. Manual Climate Control Press and release the button to direct airflow to the instrument panel air vents.

Ford Escape. Manual Climate Control Press and release the button to direct airflow to the footwell air vents.

You can direct air through any combination of these air vents.

Setting the Blower Motor Speed

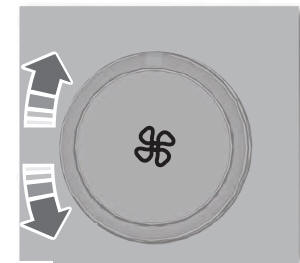

Ford Escape. Manual Climate Control

Turn the control to adjust the volume of air circulated in the vehicle.

Setting the Temperature

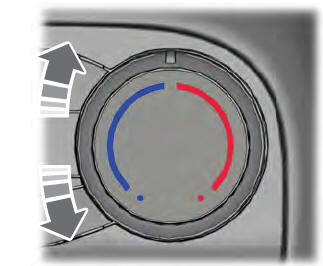

Ford Escape. Manual Climate Control

Turn the control to set the temperature.

Switching the Air Conditioning On and Off

Ford Escape. Manual Climate Control Press and release the button to switch the air conditioning on or off.

Use air conditioning with recirculated air to improve cooling performance and efficiency.

Note: In certain conditions, for example, maximum defrost, the air conditioning compressor may continue to operate even though you switch off the air conditioning.

Switching the Climate Control On and Off

Ford Escape. Manual Climate Control Press and release the button.

Switching Maximum Air Conditioning On and Off

Ford Escape. Manual Climate Control Turn the temperature control counterclockwise to the lowest setting for maximum cooling.

The left-hand and right-hand settings set to LO, recirculated air flows through the instrument panel air vents, air conditioning turns on and the blower motor adjusts to the highest speed.

Switching Maximum Defrost On and Off

Ford Escape. Manual Climate Control Turn the temperature control clockwise to the highest setting for maximum defrosting.

The left-hand and right-hand settings set to HI, air flows through the windshield air vents, and the blower motor adjusts to the highest speed. You can also use this setting to defog and clear the windshield of a thin covering of ice. The heated rear window also turns on when you select maximum defrost.

Note: To prevent window fogging, you cannot select recirculated air when maximum defrost is on.

Switching Recirculated Air On and Off

Ford Escape. Manual Climate Control Press and release the button to switch between outside air and recirculated air.

The air currently in the passenger compartment recirculates. This may reduce the time needed to cool the interior, when used with A/C, and reduce unwanted odors from entering your vehicle.

Note: Recirculated air may turn off, or prevent you from switching on, in all air flow modes except MAX A/C to reduce the risk of fogging. Recirculation may also turn on and off in various air distribution control combinations during hot weather to improve cooling efficiency.
