Ford Escape: Fuel and Refueling / Refueling

Refueling System Overview

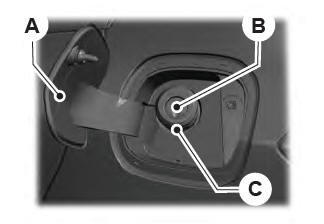

Ford Escape. Refueling

  1. Fuel filler door.
  2. Fuel tank filler valve.
  3. Fuel tank filler pipe.

Locating the Fuel Filler Funnel. Running Out of Fuel

Locating the Fuel Filler Funnel The fuel filler funnel is under the luggage compartment floor covering. Running Out of Fuel Filling a Portable Fuel Container WARNING: Flow of fuel through a fuel pump nozzle can produce static electricity...

Refueling Your Vehicle - Excluding: Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV)

WARNING: When refueling always shut the engine off and never allow sparks or open flames near the fuel tank filler valve. Never smoke or use a cell phone while refueling...
