Ford Escape: Intake Air Distribution and Filtering / Removal and Installation - Air Cleaner

Removal

NOTE: Removal steps in this procedure may contain installation details.

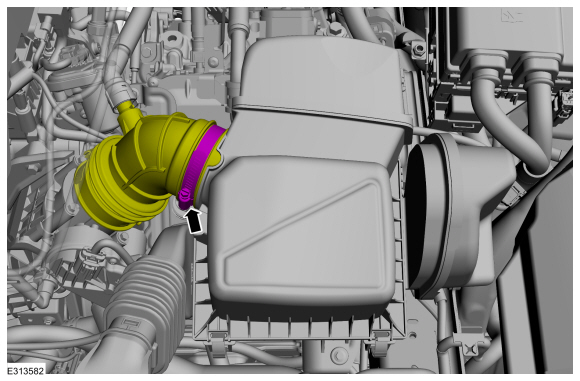

  1. Loosen the clamp and position aside the air cleaner outlet pipe.
    Torque: 44 lb.in (5 Nm)
  1. Remove the following items:
    1. Dislodge and position aside the air cleaner intake pipe.
    2. Remove the bolt.
      Torque: 97 lb.in (11 Nm)
    3. Detach and remove the air cleaner from the isolators.

Installation

  1. To install, reverse the removal procedure.
