Ford Escape: Information and Entertainment System - General Information / Removal and Installation - AM/FM1 Antenna Amplifier
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Release the clips, the trim anchors and remove the center upper liftgate interior trim panel.
Use the General Equipment: Interior Trim Remover
-

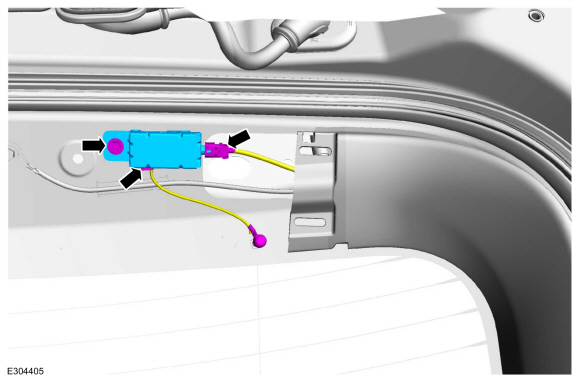

Disconnect the connectors, remove the bolt and the AM / FM amplifier.
Torque:
93 lb.in (10.5 Nm)
Installation
-
To install, reverse the removal procedure.
