Ford Escape: Battery, Mounting and Cables / Removal and Installation - Battery
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Disconnect the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
1.5L EcoBoost (132kW/180PS) – I3
-
Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering -
1.5L EcoBoost (132kW/180PS) – I3 (Y1), Removal and Installation).
2.0L EcoBoost (177kW/240PS) – MI4
-
Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering -
1.5L EcoBoost (132kW/180PS) – I3 (Y1), Removal and Installation).
1.5L EcoBlue (88kW/120PS) (ZT)/1.5L EcoBlue (90kW/120PS) (BE)
-
2.0L EcoBlue (140kW/190PS) (YM)/2.0L EcoBlue (177kW/240PS) (YL)
-
-
Remove the nuts and the battery hold-down bracket.
Torque:
71 lb.in (8 Nm)
-
Remove the battery.
Hybrid Vehicles with a Spare Tire
-
Disconnect the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
-
-
Detach the vent hose from the battery.
-
Remove the bolt and the battery hold-down bracket.
Torque:
71 lb.in (8 Nm)
-

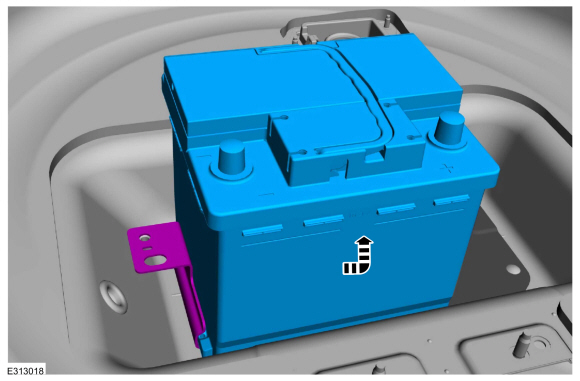

Remove the battery.
Hybrid Vehicles without a Spare Tire
-
Disconnect the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
-
-
Detach the vent hose from the battery.
-
Remove the nuts and the battery hold-down bracket.
Torque:
177 lb.in (20 Nm)
-
Remove the battery.
Installation
-
To install, reverse the removal procedure.
-
If installing a new battery, use the scan tool to carry
out the Battery Monitoring System (BMS) reset after the battery is
connected.
