Ford Escape: Engine / Removal and Installation - Engine Mount

Special Tool(s) / General Equipment

Trolley Jack
Wooden Block

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

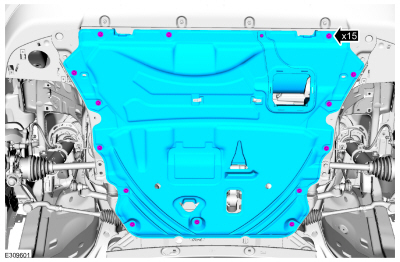

  1. Remove the fasteners and undershield.
  1. NOTE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan.

    Position the jack and wooden block under the front of the oil pan to support the engine.
    Use the General Equipment: Trolley Jack
    Use the General Equipment: Wooden Block
  1. Remove the degas bottle.
    Refer to: Degas Bottle (303-03C Engine Cooling, Removal and Installation).
  1. Remove the bolts, nuts and the engine mount.

Installation


  1. Hand start the engine mount fasteners.
    1. Tighten the engine mount nuts.
      Torque: 81 lb.ft (110 Nm)
    1. Tighten the engine mount bolts.
      Torque: 129 lb.ft (175 Nm)
  1. Install the degas bottle.
    Refer to: Degas Bottle (303-03C Engine Cooling, Removal and Installation).
  1. Remove the jack and wooden block from under the engine.
    Use the General Equipment: Trolley Jack
    Use the General Equipment: Wooden Block
  1. Install the undershield and fasteners.
