Ford Escape 2020-2025 Service Manual / Powertrain / Engine / Evaporative Emissions / Removal and Installation - Evaporative Emission Canister - Hybrid Electric Vehicle (HEV)

Ford Escape: Evaporative Emissions / Removal and Installation - Evaporative Emission Canister - Hybrid Electric Vehicle (HEV)

Removal

  WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

  WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

  WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting (100-02) .
  1. Disconnect the negative battery cable.
    Refer to: Battery Disconnect and Connect - Full Hybrid Electric Vehicle (FHEV)/Plug-In Hybrid Electric Vehicle (PHEV) (414-01) .

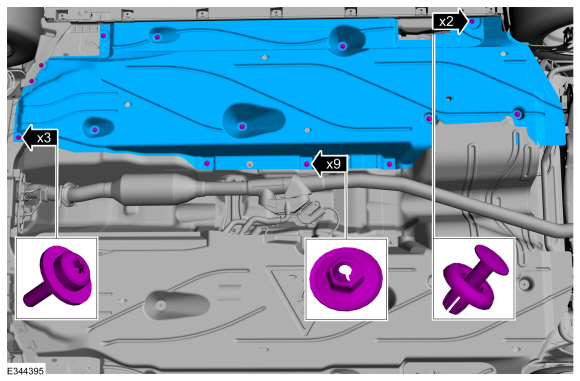

    • Remove the fasteners.
      Torque: 22 lb.in (2.5 Nm)
    • Remove the fasteners.
      Torque: 22 lb.in (2.5 Nm)
    • Remove the pushpins.

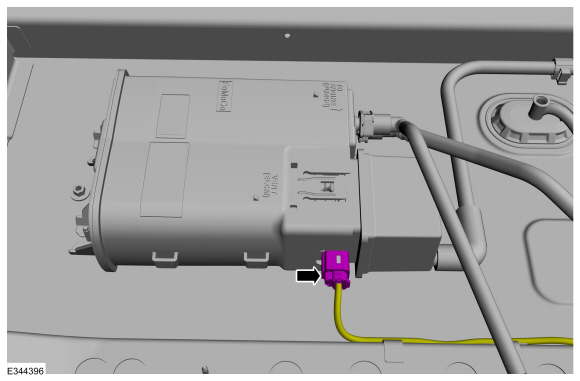

  1. Disconnect the EVAP canister electrical connector.
    • Disconnect the EVAP canister quick release couplings.
      Refer to: Quick Release Coupling (310-00 Fuel System - General Information - 2.5L Duratec – Hybrid (121kW/164PS) (BG)) .
    • Disconnect the fresh air hose and retainer.

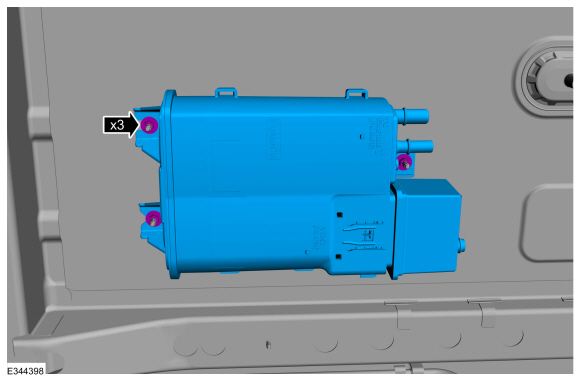

  1. Remove the nuts and the EVAP canister.
    Torque: 27 lb.in (3 Nm)

Installation

  1. To install, reverse the removal procedure.
