Ford Escape: Engine Emission Control / Removal and Installation - Exhaust Gas Recirculation (EGR) Back Pressure Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

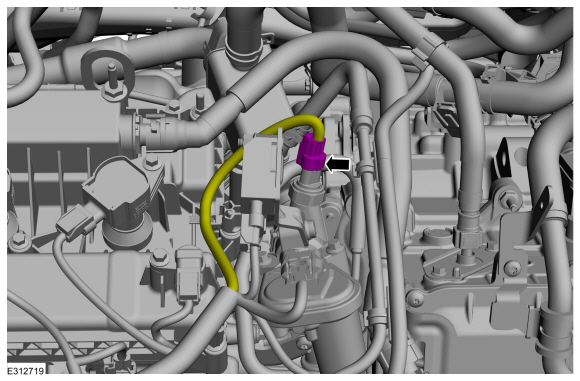

  1. Disconnect the elcetrical connector.

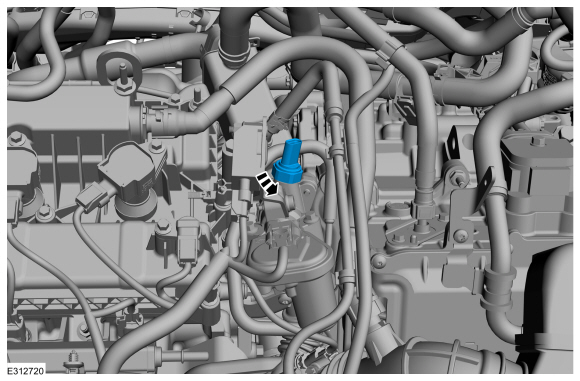

  1. NOTE: When removing the sensor, use a suitable spanner on both the sensor body and the sensor mounting boss, to prevent the removal force from damaging the EGR tube.

    Remove the EGR back pressure sensor.
    Torque: 97 lb.in (11 Nm)

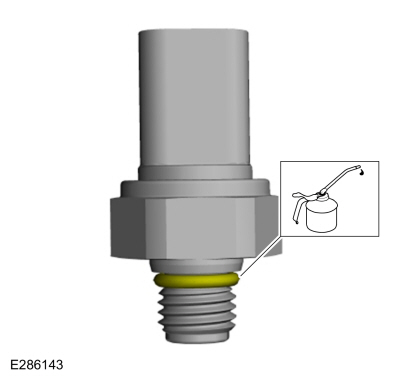

  1. Lubricate the o-ring seal with clean engine oil. Replace the o-ring if necessary.

Installation

  1. To install, reverse the removal procedure.
