System Operation
System Diagram - Conventional Ignition Switch
Item
Description
1
Gear Selector Lever
2
Ignition Switch
3
Ignition Key Inhibit Solenoid
4
PCM
5
START
6
ACC
7
ON
8
HS-CAN1
9
BCM
10
GWM
11
Run/Start Relay
Network Message Chart - Conventional Ignition Switch
&nb..

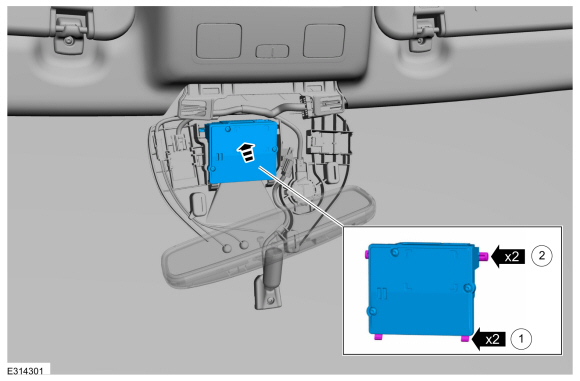

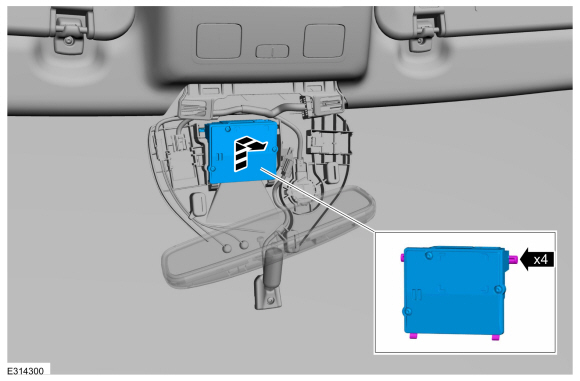

Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
If installing a new HVAC module, it is necessary to upload the module
configuration information to the scan tool prior to removing the HVAC
module. This information must be downloaded into the new HVAC module
after installation.
If installing a new HVAC module, upload the configuration informa..
