Ford Escape: Instrument Panel and Console / Removal and Installation - Instrument Panel Upper Section
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the instrument panel.
Refer to: Instrument Panel (501-12 Instrument Panel and Console, Removal and Installation).
-

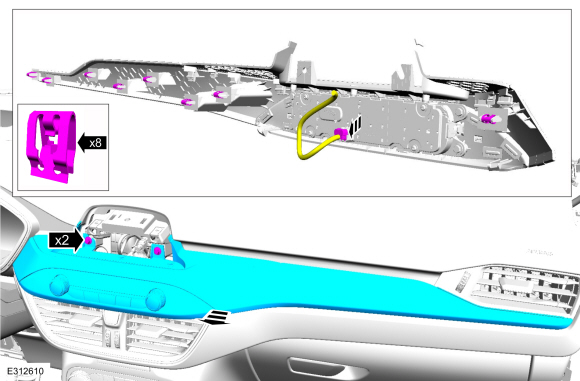

Release the clips and remove the LH trim panel.
-
Disconnect the electrical connector.
-
Release the clips and remove the trim panel.
-

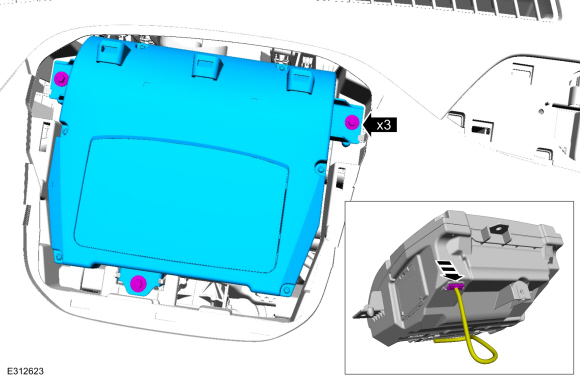

Remove the bolt and the display unit.
-
Disconnect the electrical connector.
Torque:
22 lb.in (2.5 Nm)
-

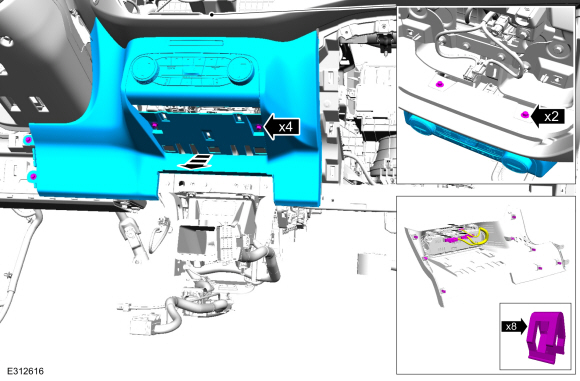

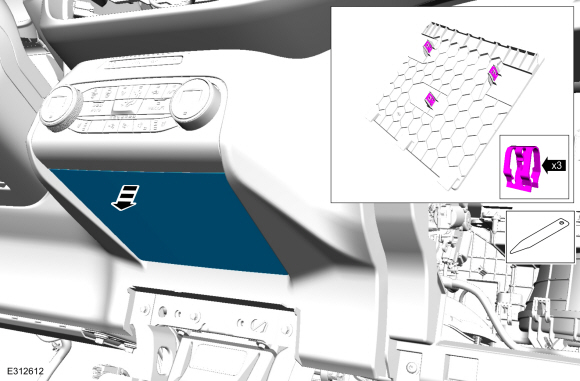

Remove the bolts, release the clips and remove the center instrument panel trim panel.
-
Disconnect the electrical connector.
Torque:
22 lb.in (2.5 Nm)
-

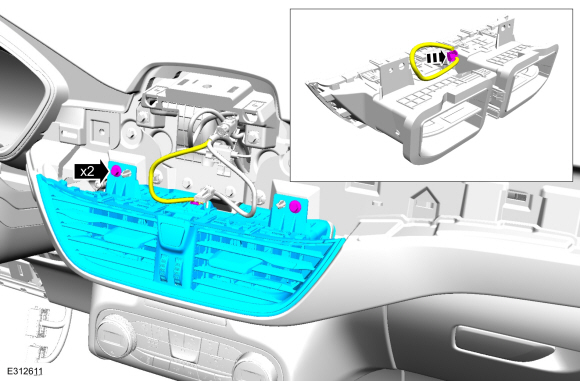

Remove the bolts and the center HVAC register.
-
Disconnect the electrical connector.
Torque:
22 lb.in (2.5 Nm)
-
Disconnect the electrical connector.
-
Release the clips and remove the lower finsih panel.
-
-

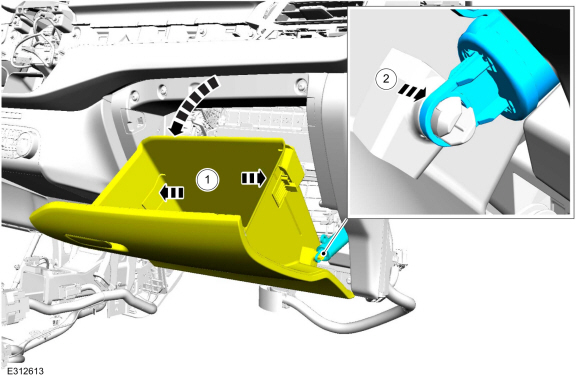

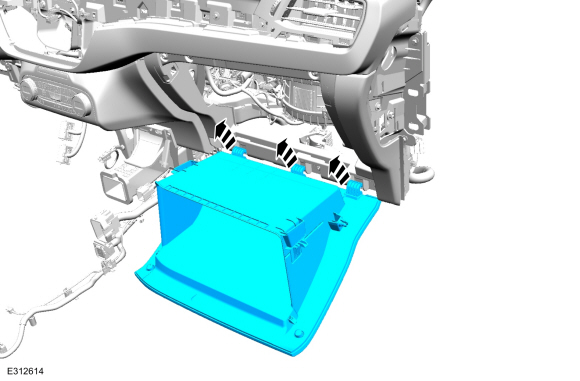

Release the stop and fully lower the glove compartment.
-
Remove the glove compartment check strap.
-
Lift the glove compartment off the hinges remove.
-
Remove the bolts, release the clips and remove the glove box close out.
Torque:
36 lb.in (4.1 Nm)
-

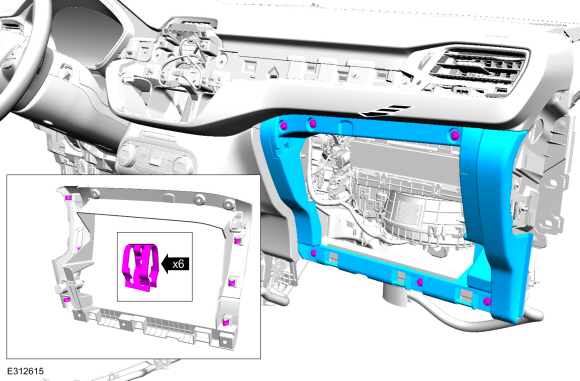

Remove the bolts, release the clips and remove the lower trim panel.
-
Disconnect the electrical connectors.
Torque:
22 lb.in (2.5 Nm)
-
Remove the steering column gap hider.
-

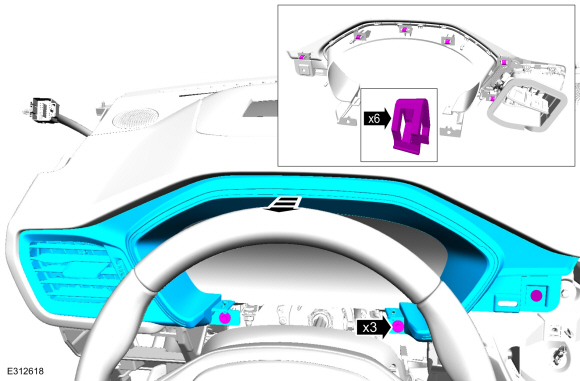

Remove the bolts, release the clips and remove the IPC trim bezel.
Torque:
33 lb.in (3.7 Nm)
-
Remove the bolts, and the IPC .
-
Disconnect the electrical connector.
Torque:
22 lb.in (2.5 Nm)
-

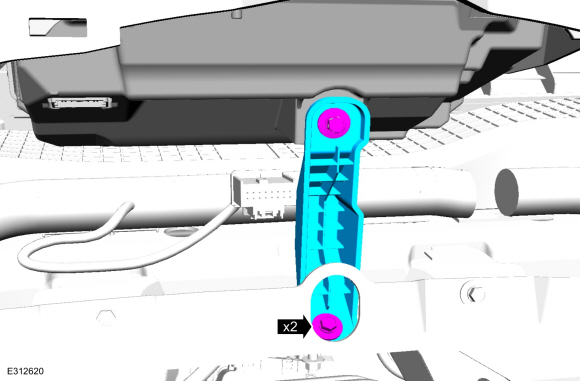

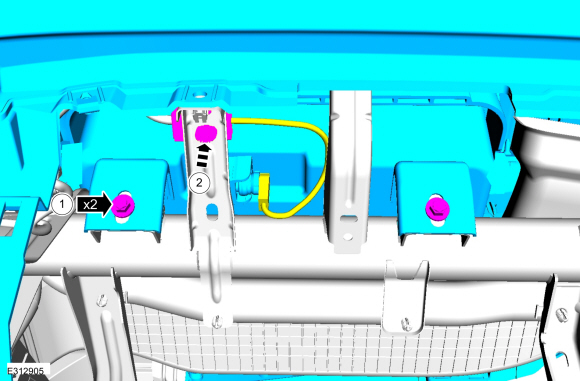

Remove the bolts and the brace.
Torque:
33 lb.in (3.7 Nm)
-
Remove the instrument panel center speaker.
Refer to: Instrument Panel Center Speaker (415-00 Information and
Entertainment System - General Information, Removal and Installation).
-

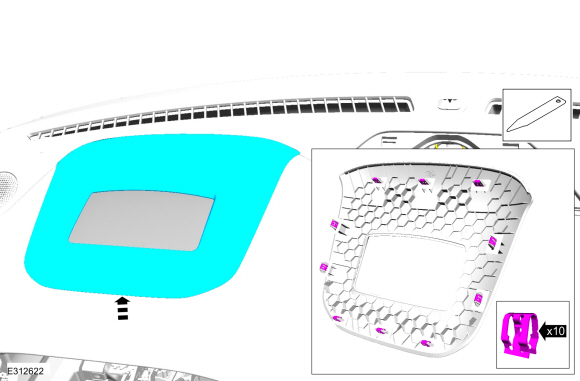

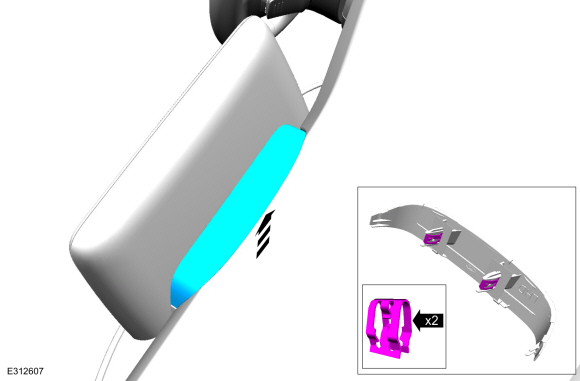

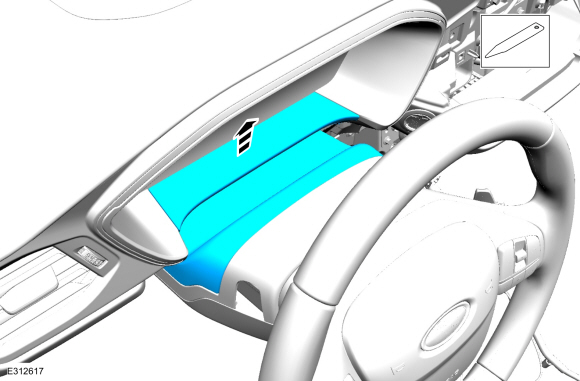

Release the clips and remove the HUD trim panel.
Use the General Equipment: Interior Trim Remover
-
Remove the bolts and the HUD .
-
Disconnect the electrical connector.
-

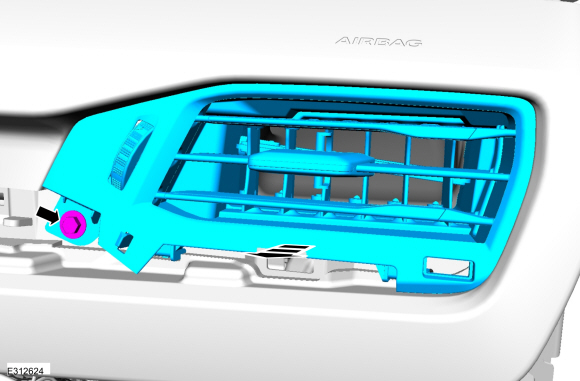

Remove the bolt the RH register.
Torque:
22 lb.in (2.5 Nm)
-

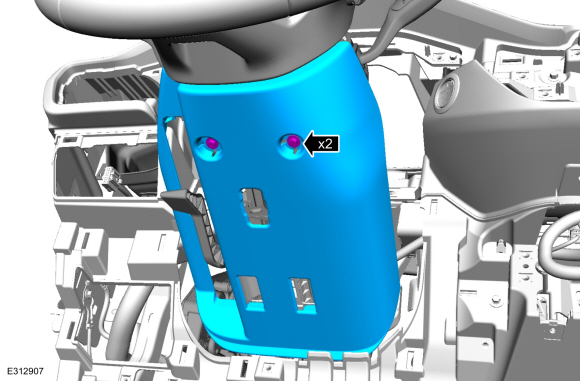

Remove the bolts and the lower steering column trim panel.
Torque:
17 lb.in (1.9 Nm)
-
WARNING:
Do not reuse steering column nuts. This may result
in fastener failure and steering column detachment or loss of steering
control. Failure to follow this instruction may result in serious injury
to vehicle occupant(s).

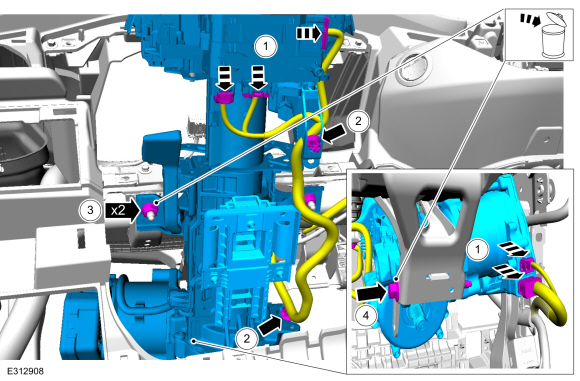

Remove the steering column.
-
Disconnect the electrical connector's.
-
Detach the harness pushpins.
-
Remove and discard the steering column nuts.
Torque:
18 lb.ft (25 Nm)
-
Remove and discard the steering column bolt.
Torque:
18 lb.ft (25 Nm)
-
Disconnect the electrical connectors, release the harness retainers and position aside the harness.
-

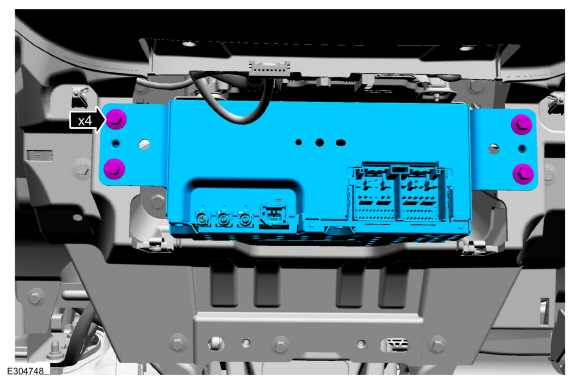

Remove the bolts and the ACM .
Torque:
22 lb.in (2.5 Nm)
-

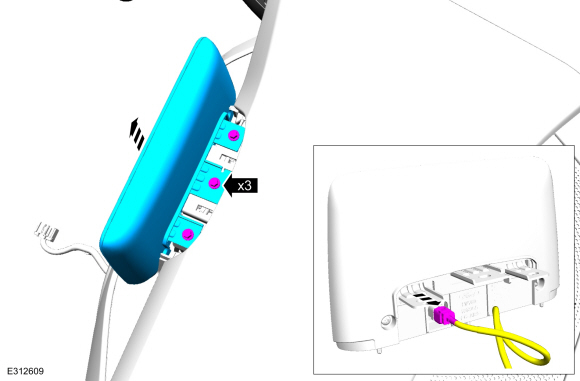

Remove the screws and position the APIM down.
Torque:
27 lb.in (3 Nm)
-

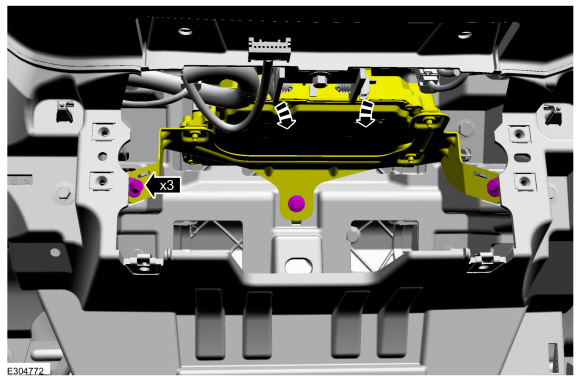

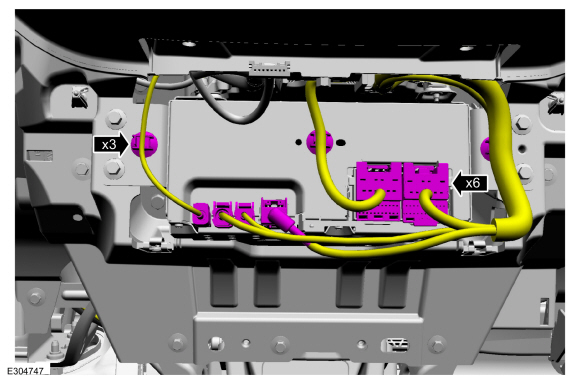

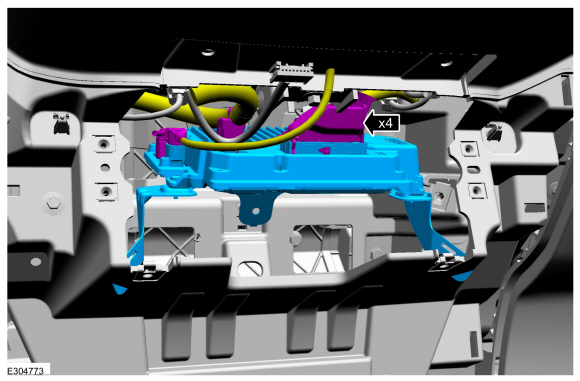

Disconnect the electrical connectors and remove the APIM and bracket.
-

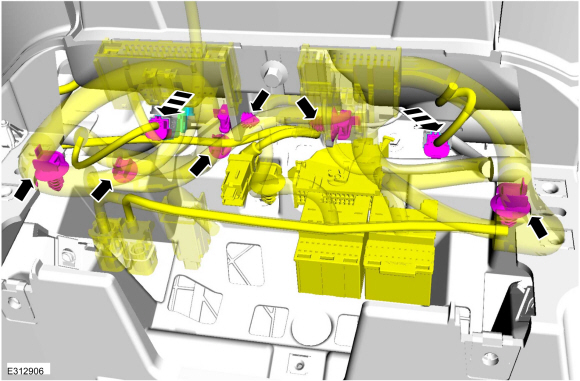

Disconnect the electrical connectors and detach the harness pushpins.
-

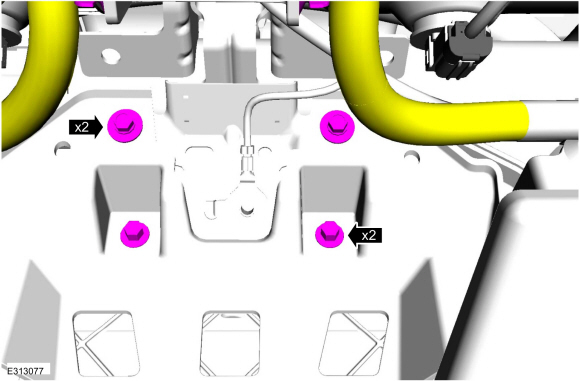

Remove the bolts.
Torque:
22 lb.in (2.5 Nm)
-
Remove the HVAC case bolts.
Torque:
62 lb.in (7 Nm)
-
-

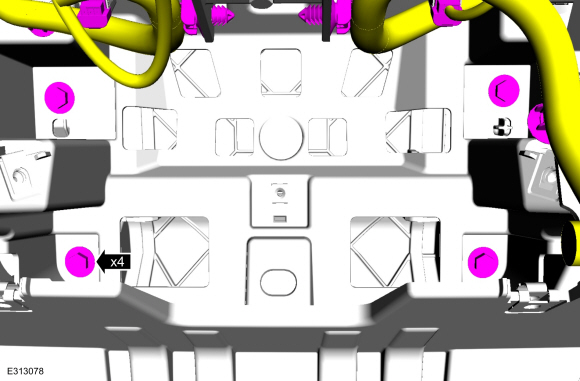

Remove the bolts.
Torque:
93 lb.in (10.5 Nm)
-

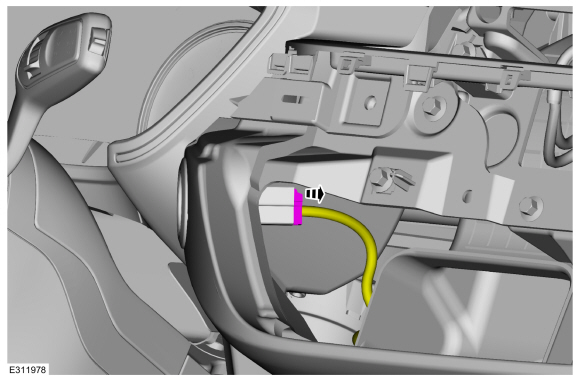

Disconnect the electrical connector and detach the harness pushpin.
-

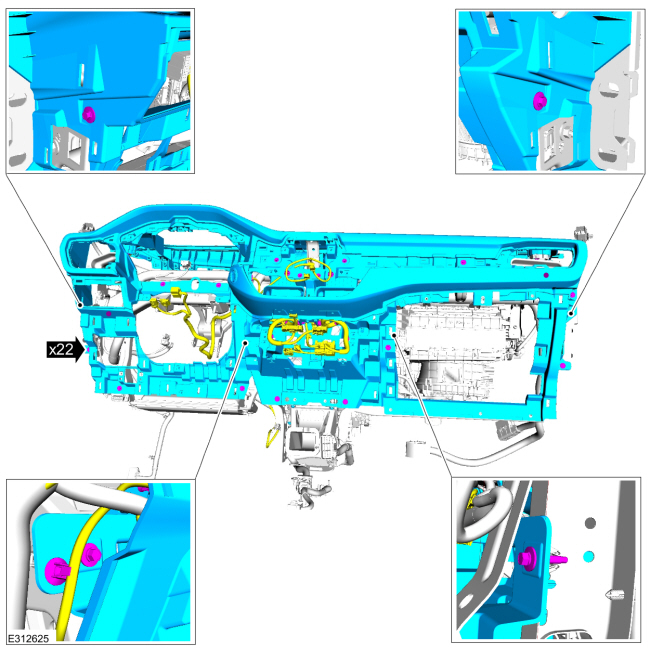

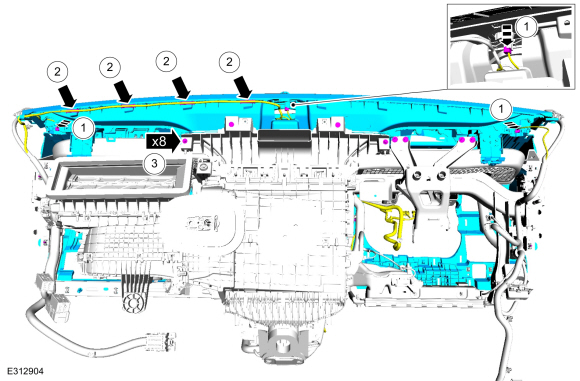

Remove the front insturment panel upper section bolts.
-
-
Disconnect the electrical connectors.
-
Detach the harness retainers and position aside the electrical harness.
-
Remove the rear instrument panel upper section bolts.
-
NOTE:
To avoid damaging the upper section, the aid of an assistant is required to carry out this step.
NOTE:
Make sure that all electrical connectors and wiring
are not hindered before removing the upper section or damage to the
components may occur.

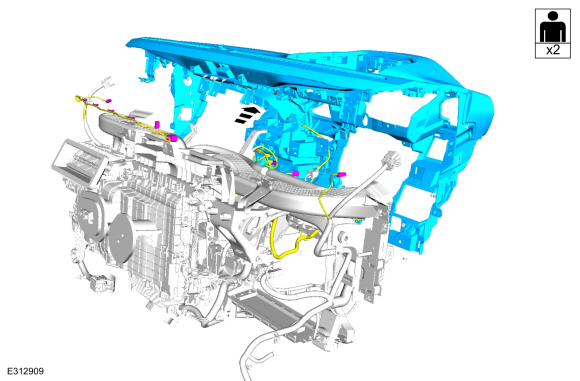

Remove the instrument panel upper section.
Installation
-
To install, reverse the removal procedure.
