Ford Escape: Multifunction Electronic Modules / Removal and Installation - Radio Transceiver Module (RTM)
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE:
If installing a new module, it is necessary to
upload the module configuration information to the diagnostic scan tool
prior to removing the module. This information must be downloaded into
the new module after installation.
Carry out the PMI procedure for the RTM .
Refer to: Module Configuration - System Operation and Component
Description (418-01 Module Configuration, Description and Operation).
-
Lower the headliner.
Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

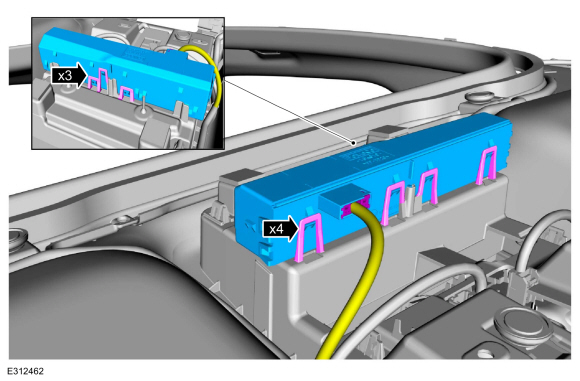

Release the tabs and remove the RTM from the bracket.
-
Disconnect the electrical connector.
Installation
-
To install, reverse the removal procedure.
-
Using the previous diagnostic scan tool session, carry out the PMI procedure for the RTM .
Refer to: Module Configuration - System Operation and Component
Description (418-01 Module Configuration, Description and Operation).
