Ford Escape: Information and Entertainment System - General Information / Removal and Installation - Subwoofer Speaker
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the RH loadspace trim panel.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
Disconnect the electrical connector, separate the wiring guide, remove the bolts and the subwoofer speaker.
Torque:
62 lb.in (7 Nm)
Installation
-
To install, reverse the removal procedure.
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
Remove the floor console.
Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation)...
Removal
Remove the ACM .
Refer to: Audio Front Control Module (ACM) (415-00 Information and
Entertainment System - General Information, Removal and Installation)...
Other information:
Removal
NOTICE:
During the removal of components, cap, tape or otherwise
appropriately protect all openings to prevent the ingress of dirt or
other contamination. Remove protective materials prior to installation.
NOTE:
Removal steps in this procedure may contain installation details...
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.

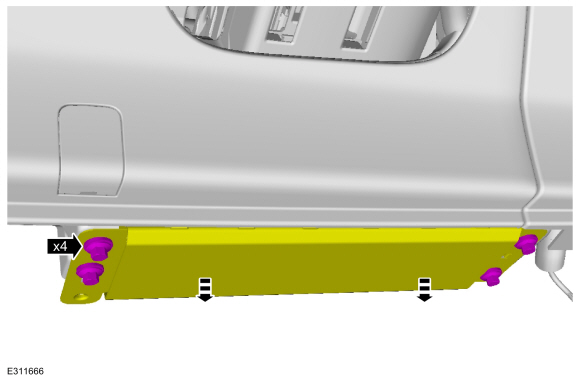

Remove the push pins.
Remove the retainer clips and moulding...
