Ford Escape: Information and Entertainment System - General Information / Removal and Installation - SYNC Module [APIM]

Removal

  1. Remove the ACM .
    Refer to: Audio Front Control Module (ACM) (415-00 Information and Entertainment System - General Information, Removal and Installation).

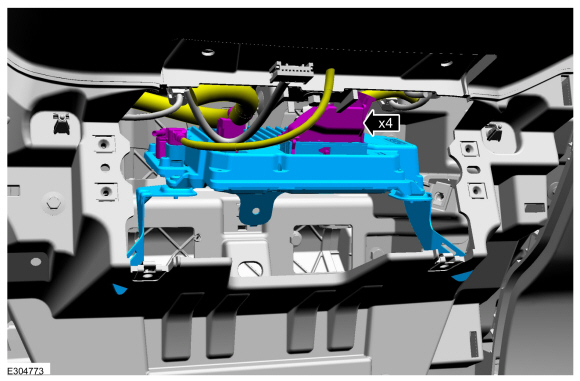

  1. Remove the screws and position the APIM down.
    Torque: 44 lb.in (5 Nm)
  1. Disconenct the electrical connectors and remove the APIM and bracket as an assembly.
  1. Remove the screws and the APIM .

Installation

  1. To install, reverse the removal procedure.
  1. If a new APIM is being installed, program the APIM to the correct software level.
    Refer to: Module Programming (418-01 Module Configuration, General Procedures).
