Ford Escape 2020-2022 Owners Manual / Scheduled Maintenance / Special Operating Conditions Scheduled Maintenance

Ford Escape: Scheduled Maintenance / Special Operating Conditions Scheduled Maintenance

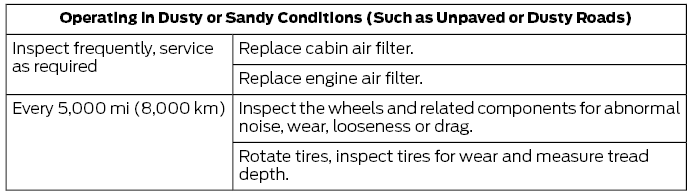

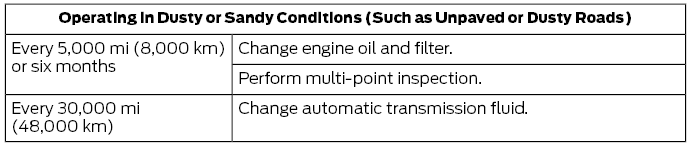

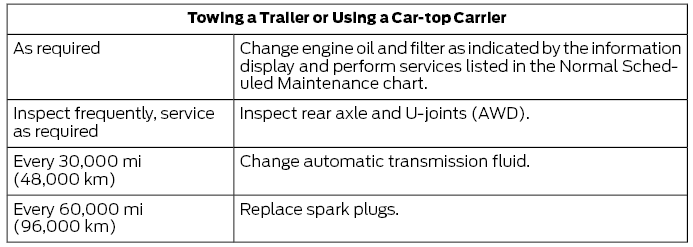

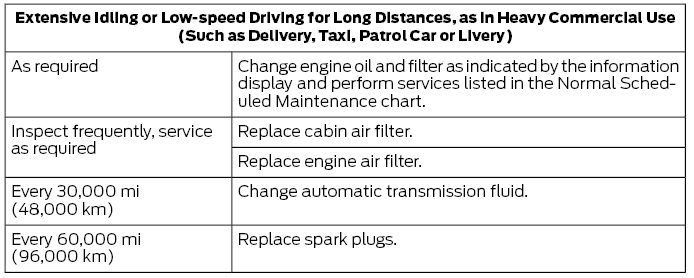

If you operate your vehicle primarily in any of the following conditions, you need to perform extra maintenance as indicated. If you operate your vehicle occasionally under any of these conditions, it is not necessary to perform the extra maintenance. For specific recommendations, see your dealership service advisor or technician.

Perform the services shown in the following tables when specified or within 3,000 mi (4,800 km) of the OIL CHANGE REQUIRED message appearing in the information display.

Example 1: The OIL CHANGE REQUIRED message comes on at 28,751 mi (46,270 km). Perform the 30,000 mi (48,000 km) automatic transmission fluid replacement.

Example 2: The OIL CHANGE REQUIRED message has not come on, but the odometer reads 30,000 mi (48,000 km) (for example, the Intelligent Oil-Life Monitor was reset at 25,000 mi (40,000 km)). Perform the engine air filter replacement.

Ford Escape. Special Operating Conditions Scheduled Maintenance

Ford Escape. Special Operating Conditions Scheduled Maintenance

Ford Escape. Special Operating Conditions Scheduled Maintenance

Ford Escape. Special Operating Conditions Scheduled Maintenance

Ford Escape. Special Operating Conditions Scheduled Maintenance

Exceptions

There are several exceptions to the Normal Schedule:

California Fuel Filter Replacement

If you register your vehicle in California, the California Air Resources Board has determined that the failure to perform this maintenance item does not nullify the emission warranty or limit recall liability before the completion of your vehicle's useful life. Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified intervals and to record all vehicle service.

Hot Climate Oil Change Intervals

The normal oil change interval for vehicles operating in the Middle East, North Africa, Sub-Saharan Africa or locations with similar climates using an American Petroleum Institute (API) Certified for Gasoline Engines (Certification mark) oil of SM or SN quality is 3,000 mi (5,000 km).

If the available API SM or SN oils are not available, then the oil change interval is 2,000 mi (3,000 km).

Engine Air Filter and Cabin Air Filter Replacement

The life of the engine air filter and cabin air filter is dependent on exposure to dusty and dirty conditions. Vehicles operated in these conditions require frequent inspection and replacement of the engine air filter and cabin air filter.

    Normal Scheduled Maintenance

    Intelligent Oil-Life Monitorâ„¢ Your vehicle has an Intelligent Oil-Life Monitor that determines when you should change the engine oil based on how you use your vehicle...
