Ford Escape: At a Glance

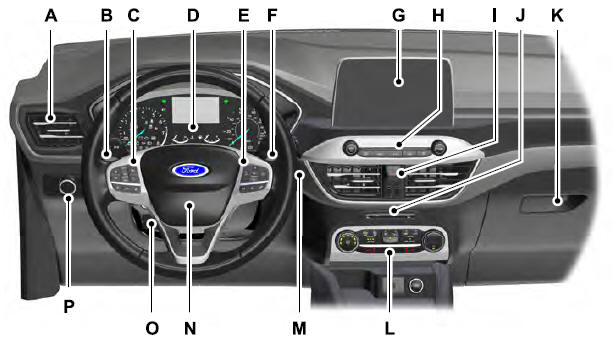

INSTRUMENT PANEL

- Air vents.
- Direction indicators. See Overriding Automatic High Beam Control.
- Cruise controls. See What Is Cruise Control.
- Information Display. See Instrument Cluster Overview.
- Information display controls and audio controls. See Using the
Instrument
Cluster Display Controls. See Muting the Audio.
- Wiper lever. See Switching Windshield Wipers On and Off.
- Touchscreen display.
- Audio unit controls. See Playing or Pausing the Audio Source.
- Hazard flasher. See Switching the Hazard Flashers On and Off.
- Passenger airbag deactivation indicator. See Crash Sensors and
Airbag Indicator.
- Glove compartment.
- Climate controls. See Automatic Climate Control
- Push button ignition switch. See Push Button Ignition Switch.
- Horn.
- Steering wheel adjustment. See Adjusting the Steering Wheel.
- Lighting control. See Exterior Lighting Control.
