Ford Escape: Exterior Lighting / Automatic High Beam Control

How Does Automatic High Beam Control Work

Automatic high beam control turns the high beams on if it is dark enough and no other traffic is present. If it detects an approaching vehicle’s headlamps or tail lamps, or street lighting ahead, the system turns the high beams off.

A camera sensor, centrally mounted behind the windshield of your vehicle, continuously monitors conditions to turn the high beams on and off.

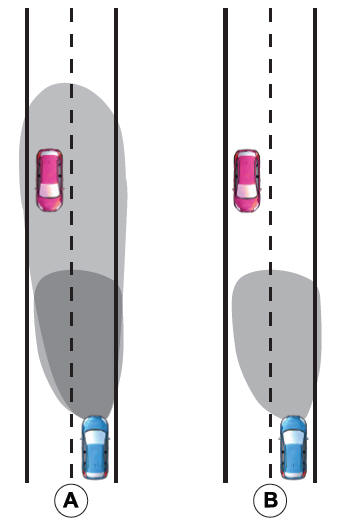

Ford Escape. Automatic High Beam Control

  1. Without automatic high beam control.
  2. With automatic high beam control.

Automatic High Beam Control Precautions

WARNING: The system does not relieve you of your responsibility to drive with due care and attention. You may need to override the system if it does not turn the high beams on or off.

WARNING: Do not use the system in poor visibility, for example fog, heavy rain, spray or snow.

WARNING: You may need to override the system when approaching other road users.

WARNING: You may need to override the system during inclement weather.

Automatic High Beam Control Requirements

The system turns the high beams on if all of the following occur:

  • You switch the system on.
  • You set the lighting control to the autolamps position.
  • The ambient light level is low enough that you require high beams.
  • There is no traffic in front of your vehicle.
  • The vehicle speed is greater than approximately 32 mph (52 km/h).

Automatic High Beam Control Limitations

The system turns the high beams off if any of the following occur:

  • You switch the system off.
  • You set the lighting control to any position except autolamps.
  • The ambient light level is high enough that you do not require high beams.
  • The system detects an approaching vehicle's headlamps or rear lamps.
  • The system detects severe rain, snow or fog.
  • The system detects street lighting.
  • The camera has reduced visibility.
  • The vehicle speed falls below approximately 27 mph (44 km/h).

Switching Automatic High Beam Control On and Off

  1. Press Settings on the touchscreen.
  2. Press Vehicle Settings.
  3. Press Lighting.
  4. Switch Auto Highbeam on or off.

Automatic High Beam Control Indicators

Ford Escape. Automatic High Beam Control Illuminates to confirm when the system is ready to assist.

Overriding Automatic High Beam Control

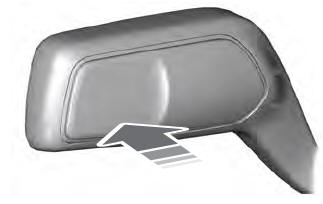

Ford Escape. Automatic High Beam Control

Push the lever away from you to switch the high beams on.

Push the lever away from you again to switch the high beams off.

Push the lever away from you for a third time to switch automatic high beam control back on.
