Ford Escape: Load Carrying / Calculating Payload

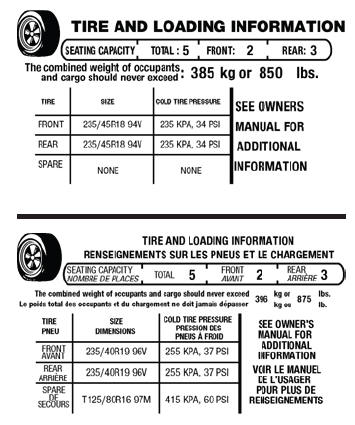

Tire and Loading Label Information Example:

Ford Escape. Calculating Payload

Payload is the combined weight of cargo and passengers that your vehicle is carrying. The maximum payload for your vehicle appears on the Tire and Loading label. The label is either on the B-pillar or the edge of the driver door. Vehicles exported outside the US and Canada may not have a tire and loading label. Look for “The combined weight of occupants and cargo should never exceed XXX kg or XXX lb” for maximum payload. The payload listed on the Tire and Loading Information label is the maximum payload for your vehicle as built by the assembly plant. If you install any additional equipment on your vehicle, you must determine the new payload. Subtract the weight of the equipment from the payload listed on the Tire and Loading label. When towing, trailer tongue weight or king pin weight is also part of payload.

    Locating the Safety Compliance Certification Labels. What Is the Gross Axle Weight Rating. What Is the Gross Vehicle Weight Rating. What Is the Gross Combined Weight Rating

    Locating the Safety Compliance Certification Labels Safety Compliance Certification Label Example: The Safety Compliance Certification label is located on the door hinge pillar, door-latch post, or the door edge that meets the door-latch post, next to the driver seating position...

    Calculating the Load Limit

    Steps for determining the correct load limit: Locate the statement "The combined weight of occupants and cargo should never exceed XXX kg or XXX lb...
