Locating the Safety Compliance Certification Labels

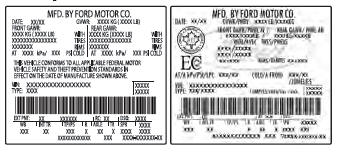

Safety Compliance Certification Label Example:

Ford Escape. Locating the Safety Compliance Certification Labels. What Is the Gross Axle Weight Rating. What Is the Gross Vehicle Weight Rating. What Is the Gross Combined Weight Rating

The Safety Compliance Certification label is located on the door hinge pillar, door-latch post, or the door edge that meets the door-latch post, next to the driver seating position.

What Is the Gross Axle Weight Rating

GAWR (Gross Axle Weight Rating)

GAWR is the maximum allowable weight that a single axle (front or rear) can carry. These numbers are on the Safety Compliance Certification label.

What Is the Gross Vehicle Weight Rating

GVWR is the maximum allowable weight of the fully loaded vehicle. This includes all options, equipment, passengers and cargo. It appears on the Safety Compliance Certification label.

What Is the Gross Combined Weight Rating

Gross Combined Weight Rating (GCWR) is the maximum allowable weight of the vehicle and the loaded trailer, including all cargo and passengers, that the vehicle can handle without risking damage. (Important: The towing vehicle’s braking system is rated for operation at Gross Vehicle Weight Rating, not at Gross Combined Weight Rating.) Separate functional brakes should be used for safe control of towed vehicles and for trailers where the Gross Combined Weight of the towing vehicle plus the trailer exceed the Gross Vehicle Weight Rating of the towing vehicle.

Note: For trailer towing information refer to the RV and Trailer Towing Guide available at an authorized dealer, or online at the website that follows.

Ford Escape. Locating the Safety Compliance Certification Labels. What Is the Gross Axle Weight Rating. What Is the Gross Vehicle Weight Rating. What Is the Gross Combined Weight Rating

    Load Carrying Precautions

    Keep your loaded vehicle weight within its design rating capability, with or without a trailer. Properly loading your vehicle provides maximum return of vehicle design performance...

    Calculating Payload

    Tire and Loading Label Information Example: Payload is the combined weight of cargo and passengers that your vehicle is carrying. The maximum payload for your vehicle appears on the Tire and Loading label...
