Ford Escape: Engine Ignition / Description and Operation - Engine Ignition - Component Location

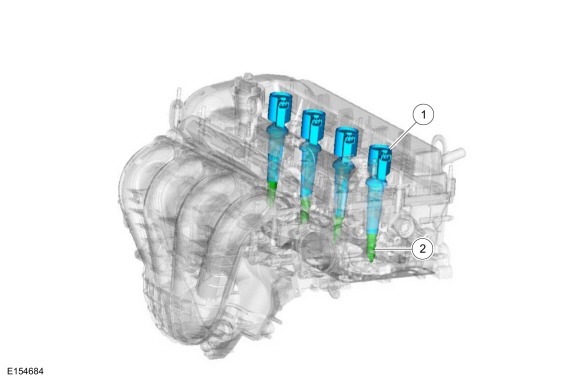

Component Location - 2.5L Duratec
| Item |
Description |
| 1 |
Ignition coil-on-plug(s).
|
| 2 |
Spark plug(s).
|
