Ford Escape 2020-2024 Service Manual / Electrical / Lighting / Exterior Lighting / General Procedures - Front Fog Lamp Adjustment

Ford Escape: Exterior Lighting / General Procedures - Front Fog Lamp Adjustment

Adjustment

  1. NOTE: Horizontal aim is not adjustable. Consult your state vehicle inspection center for recommended tolerance ranges for visual aiming.

    NOTE: Before starting fog lamp adjustment, entry conditions must be met.

    • Vehicle must be on level ground.
    • Tires must be correctly inflated.
    • Vehicle must be normally loaded.
    • Fog lamps and headlamps must be clean.
    • Air suspension switch must be on (if equipped).
    • Headlamps must be operating and correctly aimed.
  1. NOTE: The vertical wall screen must be a minimum of 3m (10 ft) wide.

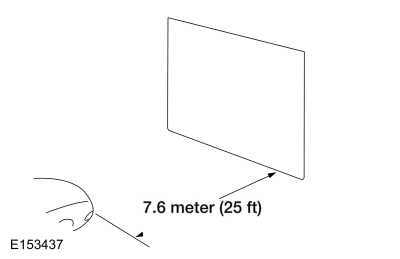

    Park the vehicle on a level surface approximately 7.6 m (25 ft) from the vertical wall or screen directly in front of it.
  1. The correct visual aim for the fog lamps is with the top edge of the high-intensity zone 101.6 mm (4 in) below the horizontal center of the fog lamps.
