Ford Escape: Seatbelt Systems / General Procedures - Seatbelt Tongue Rotated On Belt

Adjustment

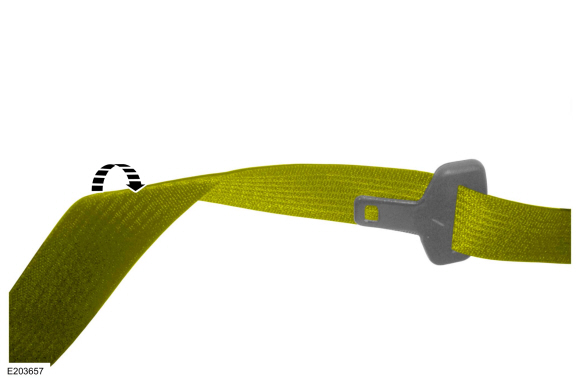

NOTE: Typical seatbelt tongue shown, others similar.

  1. Fold the seatbelt as indicated.
    1. Feed the folded portion of the seatbelt into the seatbelt tongue.
    1. Pull the seatbelt through the seatbelt tongue to remove the twist in the seatbelt.
