Ford Escape: High Voltage Battery, Mounting and Cables / General Procedures - Vent Patch

Repair

  WARNING: To prevent the risk of high-voltage shock, always follow precisely all warnings and service instructions, including instructions to depower the system. The high-voltage system utilizes approximately 450 volts DC, provided through high-voltage cables to its components and modules. The high-voltage cables and wiring are identified by orange harness tape or orange wire covering. All high-voltage components are marked with high-voltage warning labels with a high-voltage symbol. Failure to follow these instructions may result in serious personal injury or death.

NOTICE: If the vent patch is missing or damaged remove the high voltage battery cover and inspect inside the battery pack case for water/moisture before proceeding with repair. Refer to the high voltage battery cover removal procedure in this section.

NOTE: PHEV-A high voltage battery pack shown other high voltage battery packs similar.

  1. Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).
  1. NOTICE: To prevent damage to the high voltage battery sealing surface only use a non-marring tool to remove the vent patch.

    NOTICE: Avoid foreign material from entering the high voltage battery or component damage may occur.

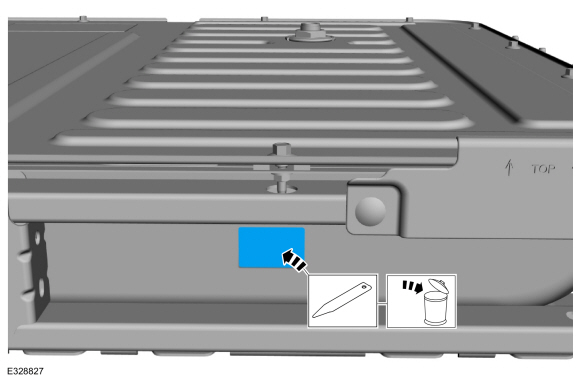

    Remove and discard the vent patch.
  1. NOTICE: For proper adhesion of the vent patch the mating surface must be clean and free of adhesive material.

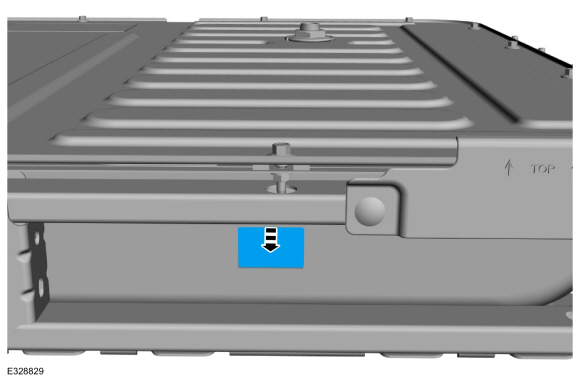

    Clean the metal surface with an alcohol wipe where the vent patch is being installed.
  1. NOTICE: For proper adhesion of the vent patch minimize any contact of the adhesive backing prior to placing it onto the high voltage battery. If the vent patch is not aligned correctly or wrinkled a new vent patch must be installed.

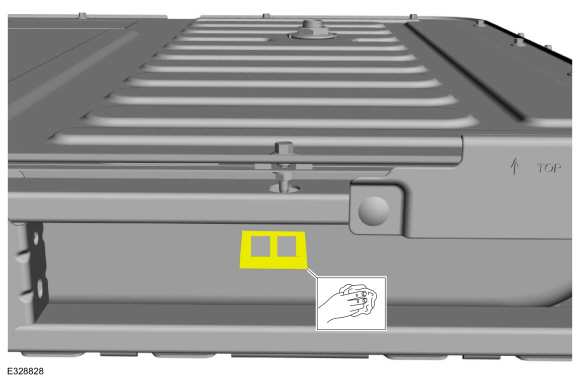

    Remove the back-liner from the new vent patch and firmly place onto the high voltage battery as shown.

    General Procedures - High Voltage System De-energizing

    Special Tool(s) / General Equipment Cable Ties Depower   WARNING: To prevent the risk of high-voltage shock, always follow precisely all warnings and service instructions, including instructions to depower the system...

    Removal and Installation - Battery Energy Control Module (BECM) - Hybrid Electric Vehicle (HEV)

    Removal   WARNING: To prevent the risk of high-voltage shock, always follow precisely all warnings and service instructions, including instructions to depower the system...
