Ford Escape: Side Panel Sheet Metal Repairs / Removal and Installation - A-Pillar Outer Panel

Special Tool(s) / General Equipment

Resistance Spotwelding Equipment
Spherical Cutter
Hot Air Gun
Air Body Saw
8 mm Drill Bit
MIG/MAG Welding Equipment
Spot Weld Drill Bit
Locking Pliers

Materials

Name Specification
Seam Sealer
TA-2-B, 3M™ 08308, LORD Fusor® 803DTM
-

Flexible Foam Repair
3M™ 08463, LORD Fusor® 121
-


Removal

  WARNING: Electric vehicles damaged by a crash may have compromised high voltage safety systems and present a potential high voltage electrical shock hazard. Exercise caution and wear appropriate Personal Protective Equipment (PPE) safety gear, including high voltage safety gloves and boots. Remove all metallic jewelry, including watches and rings. Isolate the HV system as directed by the Ford Emergency Response Guide for the vehicle. Failure to follow these instructions may result in serious personal injury or death.

NOTICE: Battery electric vehicle (BEV), hybrid electric vehicle (HEV) and plug-in hybrid electric vehicle (PHEV) contain a high-voltage battery. Before cutting or welding near the high-voltage battery it must be removed to avoid damage.

NOTE: Left hand (LH) side shown, right hand (RH) side similar.

  1.   WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
    Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).
  1. Depower the SRS .
    Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).
  1. Remove the fender and splash shield.
    Refer to: Fender (501-02 Front End Body Panels, Removal and Installation).
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  1. Remove the front door.
    Refer to: Front Door (501-03 Body Closures, Removal and Installation).
  1. Remove the rocker panel moulding.
    Refer to: Rocker Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
  1. Remove the front door opening weather strip.
  1. Remove the front door hinges at the body.

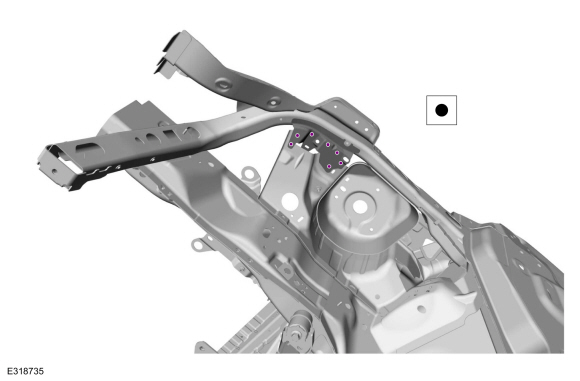

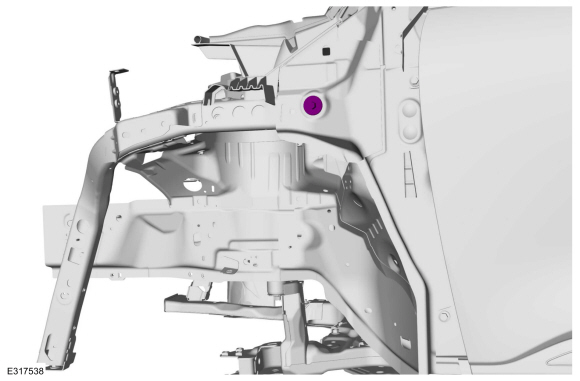

  1. Remove the bolt.
  1. Remove the body plugs.
  1. Remove the windshield.
    Refer to: Fixed Glass (501-11 Glass, Frames and Mechanisms, General Procedures).

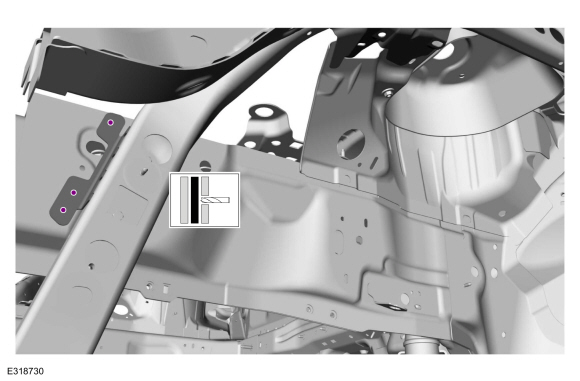

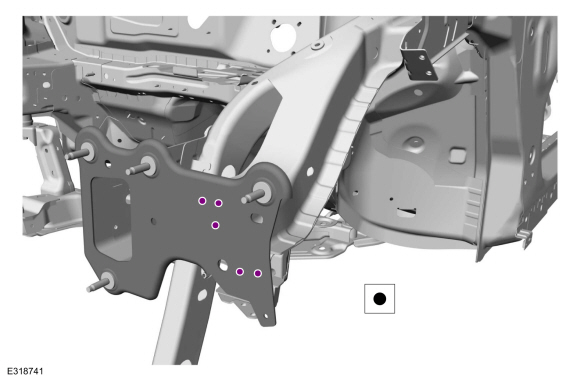

  1. Remove the welds.
    Use the General Equipment: Spot Weld Drill Bit

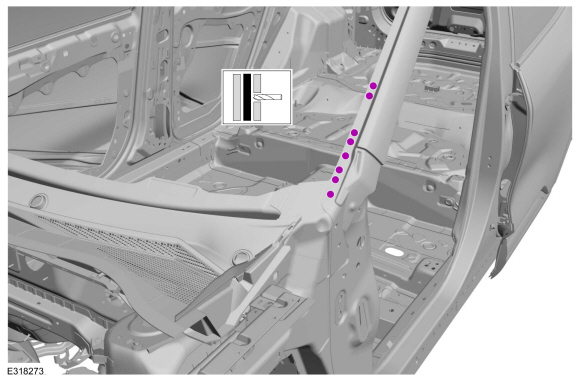

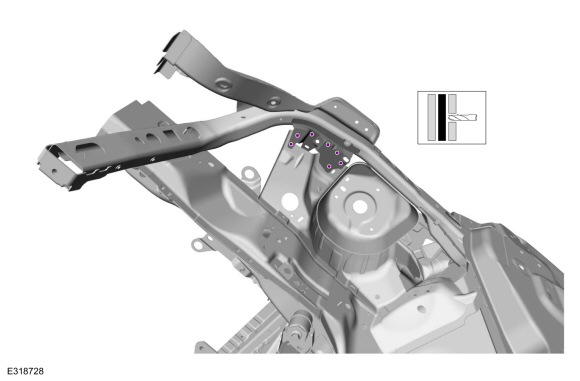

  1. Remove the welds.
    Use the General Equipment: Spot Weld Drill Bit

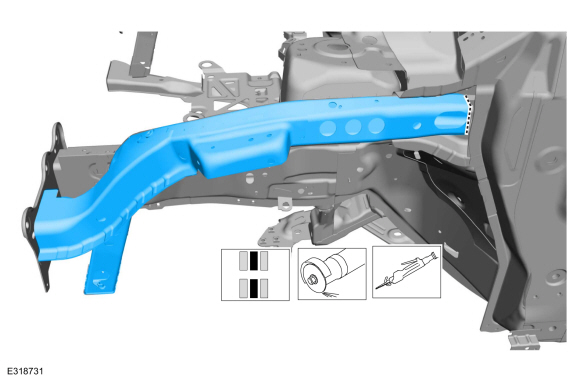

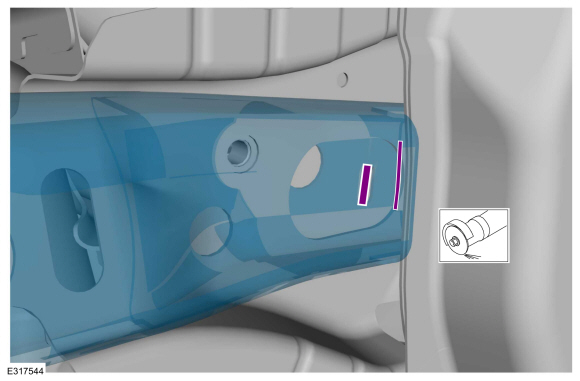

  1. Carefully cut the outer panel only.
    Use the General Equipment: Air Body Saw
    Use the General Equipment: Spherical Cutter
  1. NOTE: Pay particular attention to the location of adhesives and sealers to aid in installation

    Remove the A-pillar outer panel.
    Use the General Equipment: Hot Air Gun

Installation

  WARNING: Electric vehicles damaged by a crash may have compromised high voltage safety systems and present a potential high voltage electrical shock hazard. Exercise caution and wear appropriate Personal Protective Equipment (PPE) safety gear, including high voltage safety gloves and boots. Remove all metallic jewelry, including watches and rings. Isolate the HV system as directed by the Ford Emergency Response Guide for the vehicle. Failure to follow these instructions may result in serious personal injury or death.

NOTICE: Battery electric vehicle (BEV), hybrid electric vehicle (HEV) and plug-in hybrid electric vehicle (PHEV) contain a high-voltage battery. Before cutting or welding near the high-voltage battery it must be removed to avoid damage.

NOTICE: The high-voltage battery in a battery electric vehicle (BEV), hybrid electric vehicle (HEV) or plug-in hybrid electric vehicle (PHEV) can be affected and damaged by excessively high temperatures. The temperature in some body shop paint booths can exceed 60° C (140° F). Therefore, during refinishing operations, the paint booth temperature must set at or below 60° C (140° F) with a bake time of 45 minutes or less. Temperatures in excess of 60° C (140° F) or bake durations longer than 45 minutes will require the high-voltage battery be removed from the vehicle prior to placing in the paint booth.

NOTICE: If refinishing cure temperatures exceed 60° C (140° F), the charge port light ring on plug-in vehicles must be removed.

NOTE: Factory welds may be substituted with resistance or metal inert gas (MIG) plug welds. Resistance welds may not be placed directly over original location. They must be placed adjacent to original location and match factory welds in quantity. Metal inert gas (MIG) plug welds must equal factory welds in both location and quantity.

NOTE: Left hand (LH) side shown, right hand (RH) side similar.

  1.   WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
    Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).
  1. Cut the replacement panel to fit the repair area.
    Use the General Equipment: Air Body Saw
    Use the General Equipment: Spherical Cutter

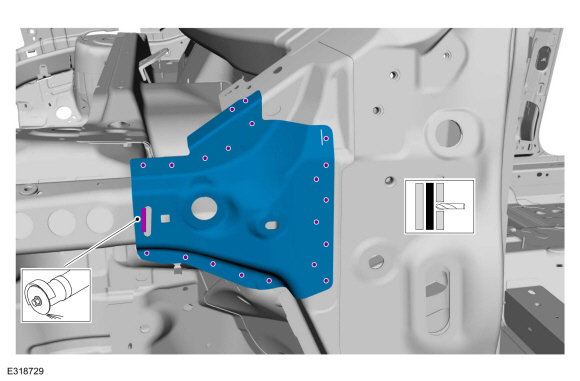

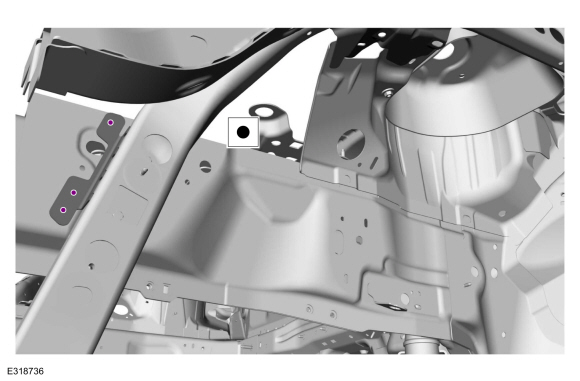

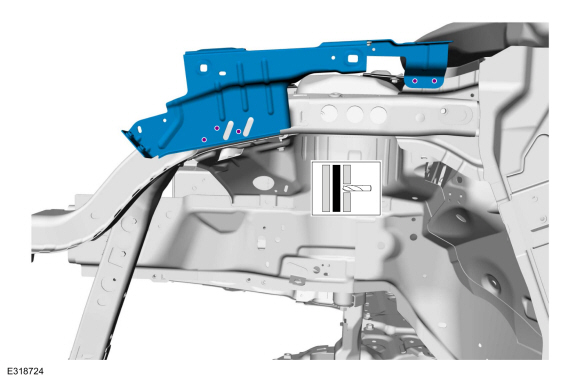

  1. Drill plug weld holes.
    Use the General Equipment: 8 mm Drill Bit

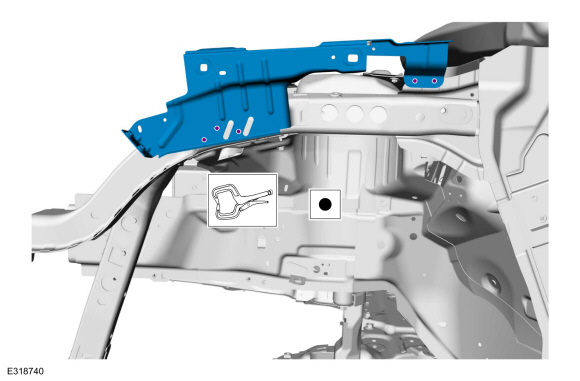

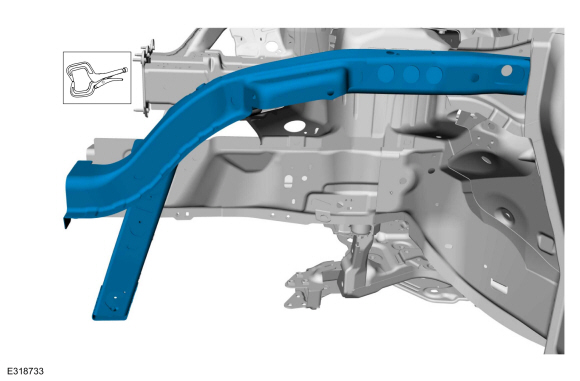

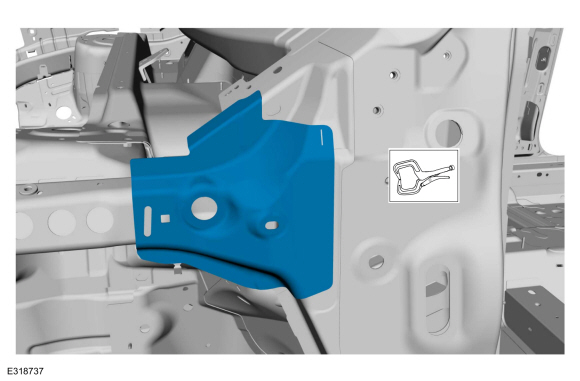

  1. Install, properly position and clamp the A-pillar outer panel.
    Use the General Equipment: Locking Pliers

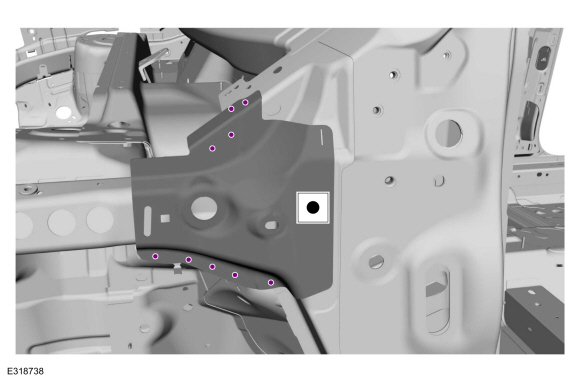

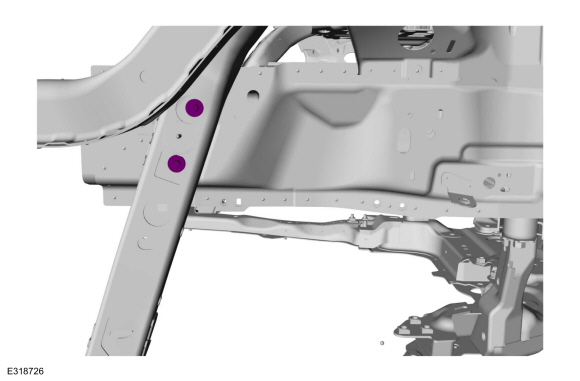

  1. Install the welds.
    Use the General Equipment: Resistance Spotwelding Equipment

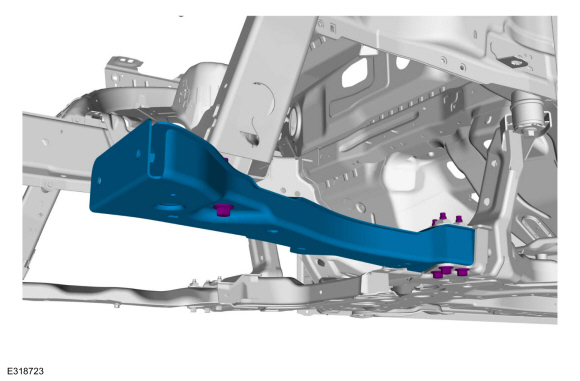

  1. Install the welds.
    Use the General Equipment: Resistance Spotwelding Equipment

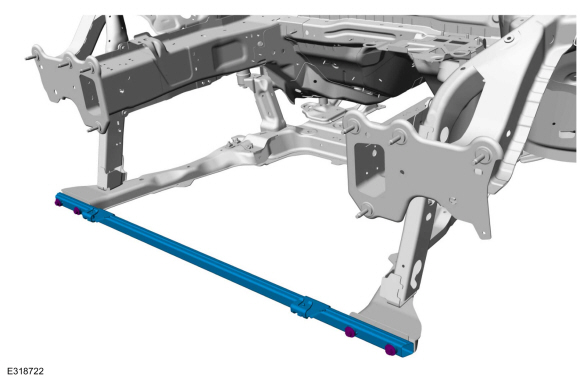

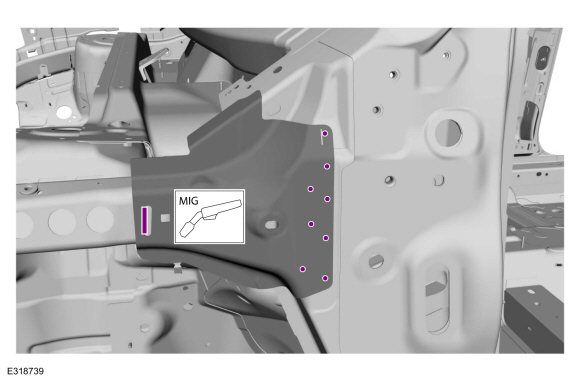

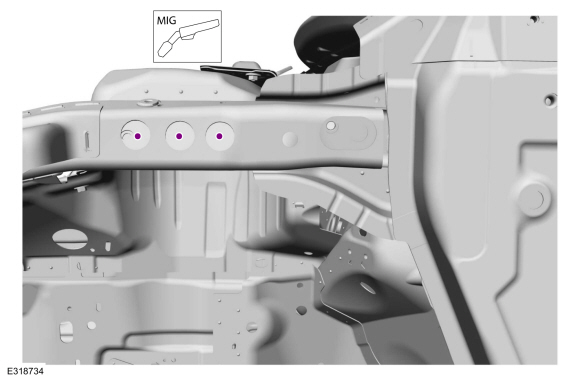

  1. Install the welds.
    Use the General Equipment: MIG/MAG Welding Equipment
  1. Completely seam welds the body side sectioning joints.
    Use the General Equipment: MIG/MAG Welding Equipment
  1. Metal finish all welds as necessary using typical metal finishing techniques and materials.
  1. Apply NVH foam sealer in areas noted during removal.
    Material: Flexible Foam Repair / 3M™ 08463, LORD Fusor® 121
  1. Seam Sealing:
    All seams must be sealed to production level.
    Material: Seam Sealer / TA-2-B, 3M™ 08308, LORD Fusor® 803DTM
  1. Sand to remove old adhesive, paint, e-coat and clean.
  1. Apply a Ford approved epoxy-based primer and allow to dry.
  1. Mask off the area.
  1. Refinish the repair using a Ford approved paint system.
  1. Unmask the area.
  1. Install the windshield.
    Refer to: Fixed Glass (501-11 Glass, Frames and Mechanisms, General Procedures).

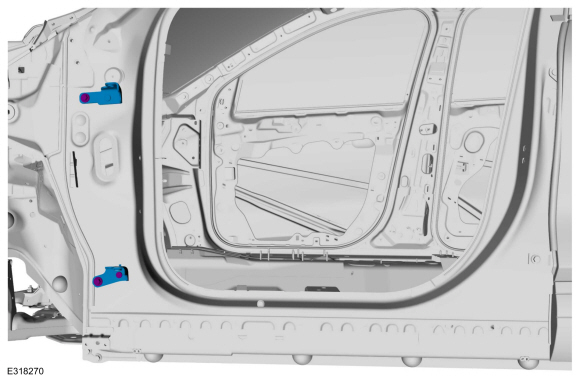

  1. Install the front door hinges at the body.
    Torque: 22 lb.ft (30 Nm)
  1. Install the bolt.
    Torque: 35 lb.ft (47 Nm)
  1. Install the body plugs.
  1. Install the rocker panel moulding.
    Refer to: Rocker Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
  1. Install the front door.
    Refer to: Front Door (501-03 Body Closures, Removal and Installation).
  1. Install the front door opening weather strip.
  1. Install the fender and splash shield.
    Refer to: Fender (501-02 Front End Body Panels, Removal and Installation).
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  1. Align the front door.
    Refer to: Front Door Alignment (501-03 Body Closures, General Procedures).
  1. Repower the SRS .
    Refer to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).
