Ford Escape: Electronic Engine Controls / Removal and Installation - Manifold Absolute Pressure and Temperature (MAPT) Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

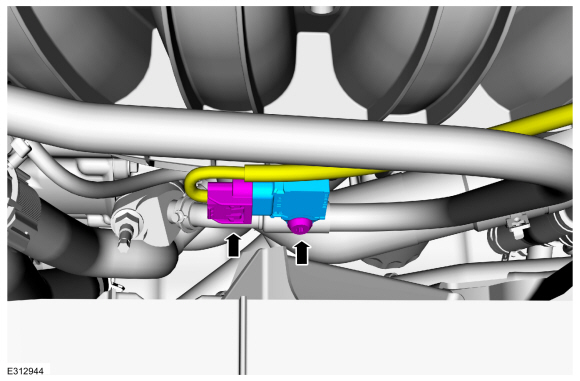

  1. Disconnect the electrical connector, remove the retainer and the MAP sensor.
    Torque: 35 lb.in (4 Nm)

Installation

  1. To install, reverse the removal procedure.
