Ford Escape: Cruise Control - Vehicles With: Adaptive Cruise Control / Removal and Installation - Cruise Control Module (CCM)
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the front bumper cover.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
-
Remove the air deflector.
-

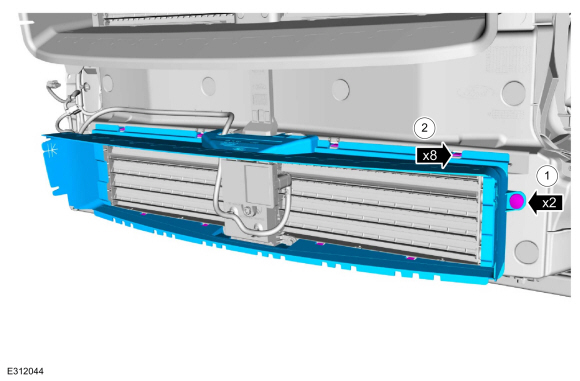

Remove the pushpins.
-
Release the tabs and remove the air deflector.
-

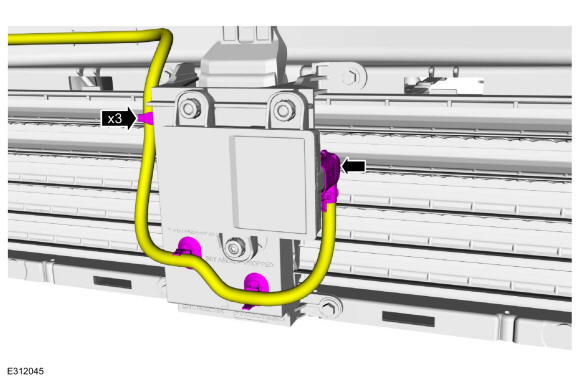

Detach the wire harness retainers and disconnect the wiring connector.
-
NOTE:
Follow the unique instructions or graphics for this step in the installation.

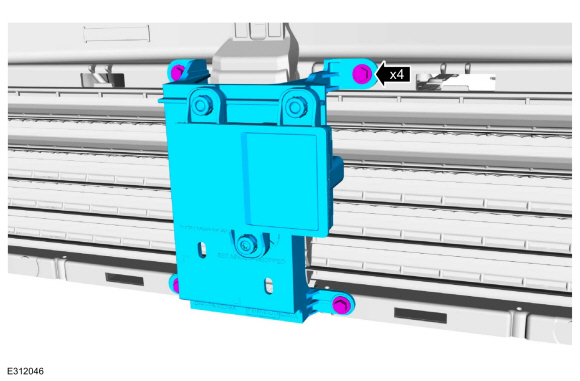

Remove the screws and the CCM and bracket.
Installation
-
To install, reverse the removal procedure.
-

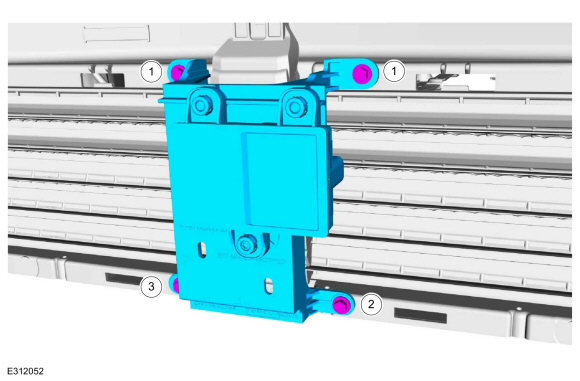

Install the screws in the following sequence
-
Install the CCM bracket screws.
Torque:
33 lb.in (3.7 Nm)
-
Install the CCM bracket screw.
Torque:
33 lb.in (3.7 Nm)
-
Install the CCM bracket screw.
Torque:
33 lb.in (3.7 Nm)
-
NOTE:
This step is only necessary when installing a new component.
Using a diagnostic scan tool, complete the PMI process for the CCM following the on-screen instructions.
-
Align the CCM .
Refer to: Cruise Control Radar Alignment (419-03B Cruise Control - Vehicles With: Adaptive Cruise Control, General Procedures).
Adjustment
Vertical Alignment
NOTE:
In order to align the CCM
, the front bumper cover must be removed to access the sensor and the
vehicle must be in a wheel alignment bay station so that the vehicle is
level...
