Ford Escape: Supplemental Climate Control / Removal and Installation - Electric Booster Heater
Removal
NOTE:
Removal steps in this procedure may installation details.
-
Remove the climate control housing.
Refer to: Climate Control Housing (412-00 Climate Control System - General Information, Removal and Installation).
-

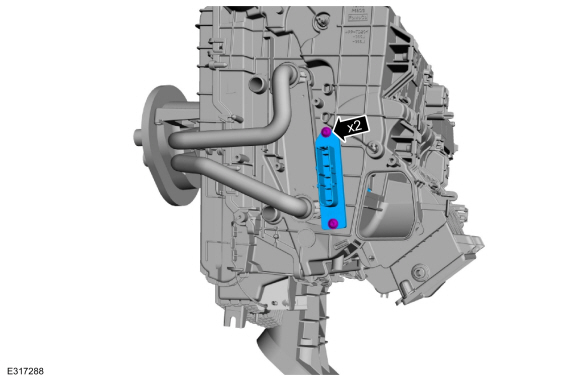

Remove the retainers and the electric booster heater.
Installation
-
To install, reverse the removal procedure.
