Ford Escape: Engine Emission Control / Removal and Installation - Exhaust Gas Recirculation (EGR) Temperature Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the air cleaner outlet pipe.
    Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering, Removal and Installation).

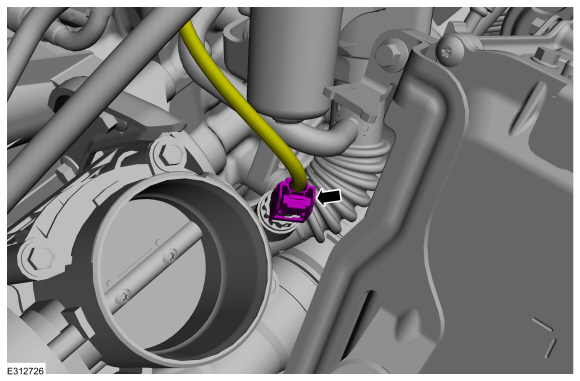

  1. Disconnect the electrical connector.
  1. NOTE: When removing the sensor, use a suitable spanner on both the sensor body and the sensor mounting boss, to prevent the removal force from damaging the EGR tube.

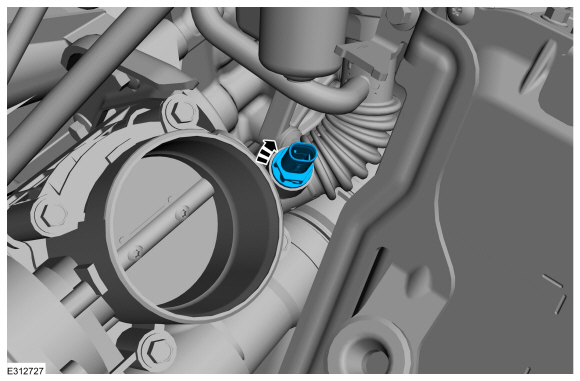

    Remove the EGR coolant outlet temperature sensor.
  1. Lubricate the o-ring seal with clean engine oil. Replace the o-ring if necessary.

Installation

  1. To install, reverse the removal procedure.
