Ford Escape: Glass, Frames and Mechanisms / Removal and Installation - Front Door Window Regulator Motor
Removal
NOTE:
Left hand (LH) shown, right hand (RH) similar.
NOTE:
For front door window regulator motors that are
non-functional it may be necessary to remove the front door window
regulator motor prior to securing the front door window glass.
-
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
NOTICE:
Damage to the front door window glass may occur if not secured.
Secure the front door window glass with tape.
-

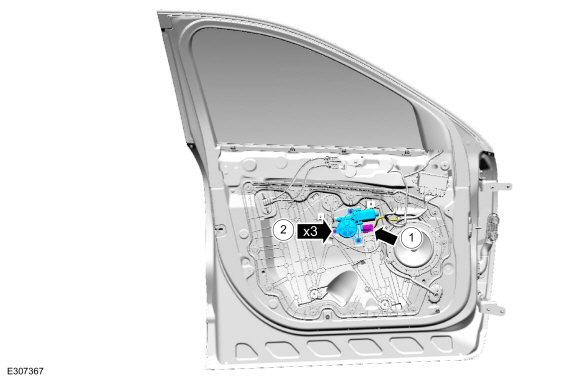

Remove the front door window regulator motor.
-
Disconnect the front door window regulator motor electrical connector.
-
Remove the bolts and the front door window regulator motor.
Installation
-
To install, reverse the removal procedure.
-
If the door is equipped with one touch up/down, carry out the power
door window initialization.
Refer to: Power Door Window Initialization - Vehicles With: One-Touch
Open and Close Front Windows (501-11 Glass, Frames and Mechanisms,
General Procedures).
