Removal

Side obstacle detection control module

NOTE: This step is only necessary if the SODL or SODR is being replaced.

NOTE: This procedure can be used for all locations of the component.

  1. Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the on-screen instructions.
  1. Remove the rear bumper cover.
    Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

  1. Remove the SODL or SODR .

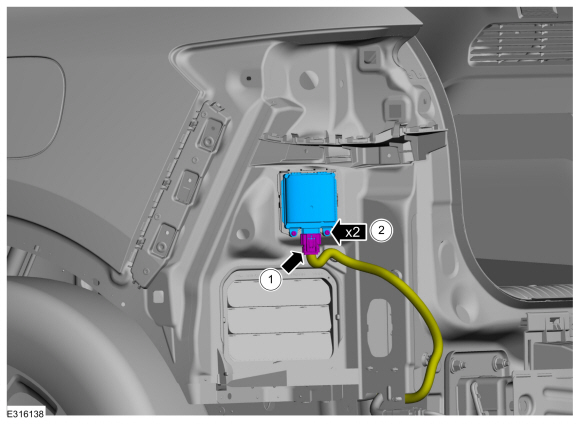

    1. Disconnect the SODL or SODR electrical connector.
    1. Remove the SODL or SODR screws.

Side obstacle detection control module bracket

  1. Remove the SODL or SODR .
  1. If required.
    Remove the screws and the SODL or SODR bracket.

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: Carry out this step only if a SODL or SODR is being replaced.

    Using a diagnostic scan tool, complete the PMI process for the SODL or SODR following the on-screen instructions.
