Ford Escape: Exterior Trim and Ornamentation / Removal and Installation - Front Fender Moulding
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

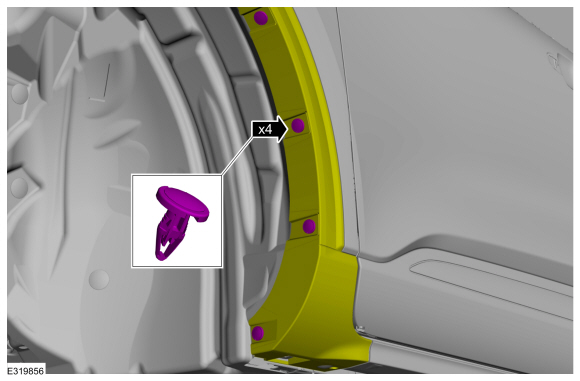

Remove the push pins.
-

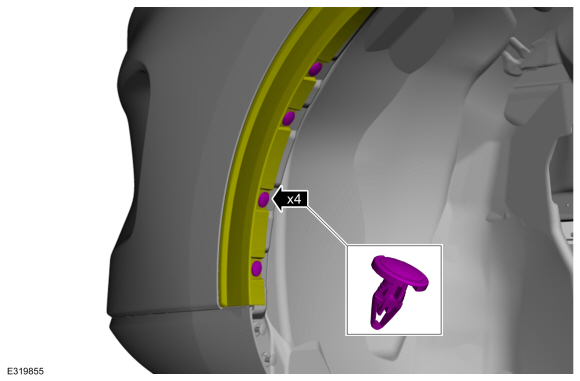

Remove the push pins.
-
Remove the fasteners.
-

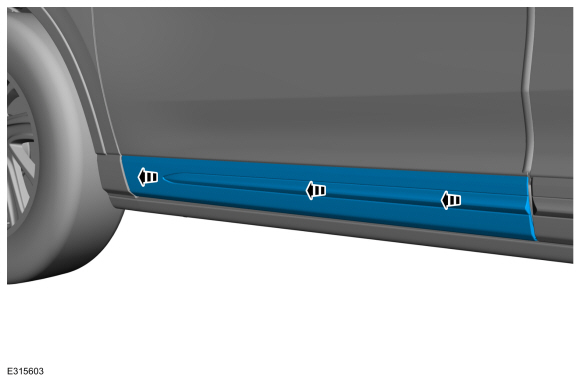

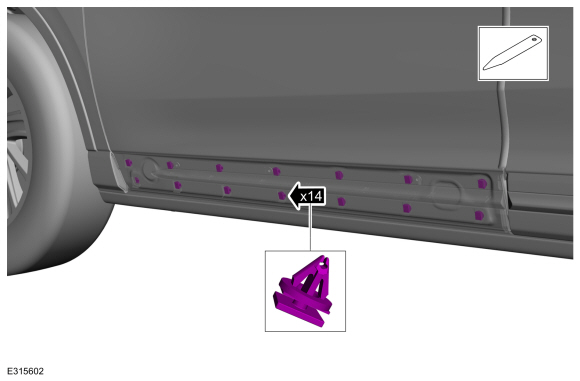

Remove the retainer clips and front fender moulding.
Installation
-
To install, reverse the removal procedure.
