Ford Escape: Exterior Trim and Ornamentation / Removal and Installation - Rear Door Moulding
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side door shown, RH side door similar.
-
NOTE:
Do not use excessive force when removing retainers, to avoid damage to moulding.

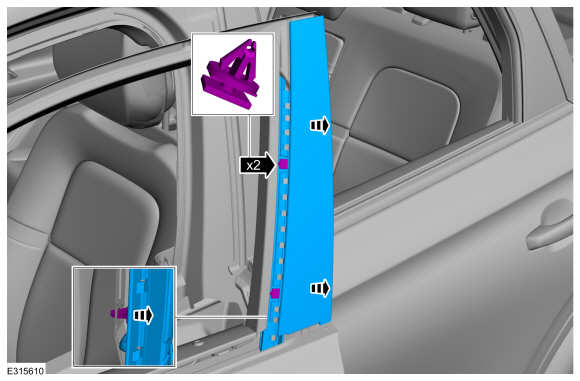

Using a non-marring trim tool, disengage the moulding retainers attaching the moulding to the door.
-
Remove the moulding.
Installation
-
To install, reverse the removal procedure.
