Ford Escape: Horn / Removal and Installation - Horn
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the front bumper cover.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
-

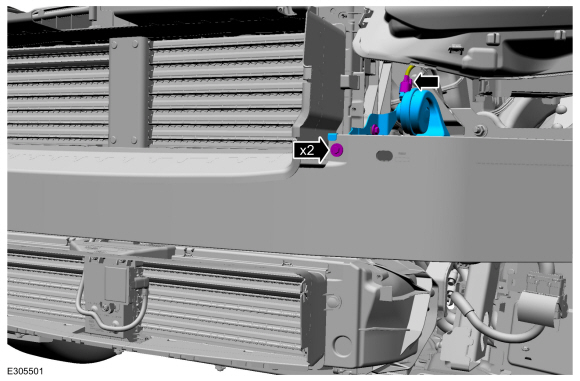

Remove the bolts, disconnect the electrical connector and remove the horn.
Torque:
93 lb.in (10.5 Nm)
Installation
-
To install, reverse the removal procedure.
