Ford Escape 2020-2026 Service Manual / Powertrain / Engine / Engine Ignition - 1.5L EcoBoost (132kW/180PS) – I3 (Y1) / Removal and Installation - Spark Plugs

Ford Escape: Engine Ignition - 1.5L EcoBoost (132kW/180PS) – I3 (Y1) / Removal and Installation - Spark Plugs

Special Tool(s) / General Equipment

303-1625
Socket, Spark Plug

Removal

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Ignition Coil-On-Plug (303-07A Engine Ignition - 1.5L EcoBoost (132kW/180PS) – I3 (Y1), Removal and Installation).

Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.

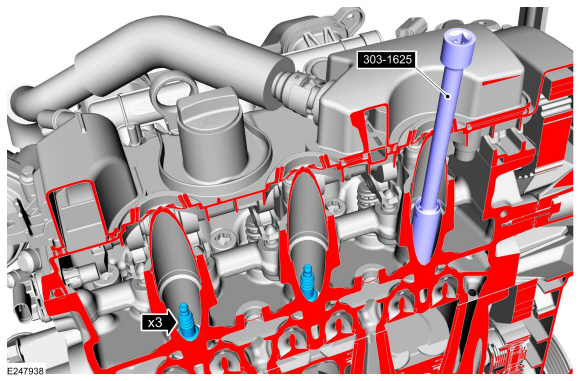

Use Suggested Tool: 303-1625 Socket, Spark Plug. Tool shown or a commercially available equivalent can be used.
Torque: 159 lb.in (18 Nm)

Installation

To install, reverse the removal procedure..
