Ford Escape: Handles, Locks, Latches and Entry Systems / Removal and Installation - Liftgate Release Switch

Removal

Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

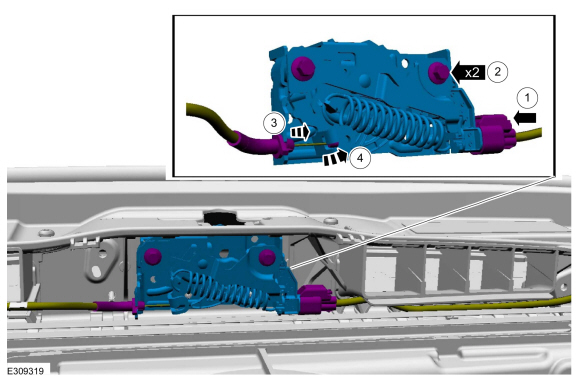

Remove the liftgate release switch.
1. Disconnect the liftgate release switch electrical connector.
1. Release the liftgate release switch retaining tabs.
1. Remove the liftgate release switch.

Installation

To install, reverse the removal procedure.
